Description

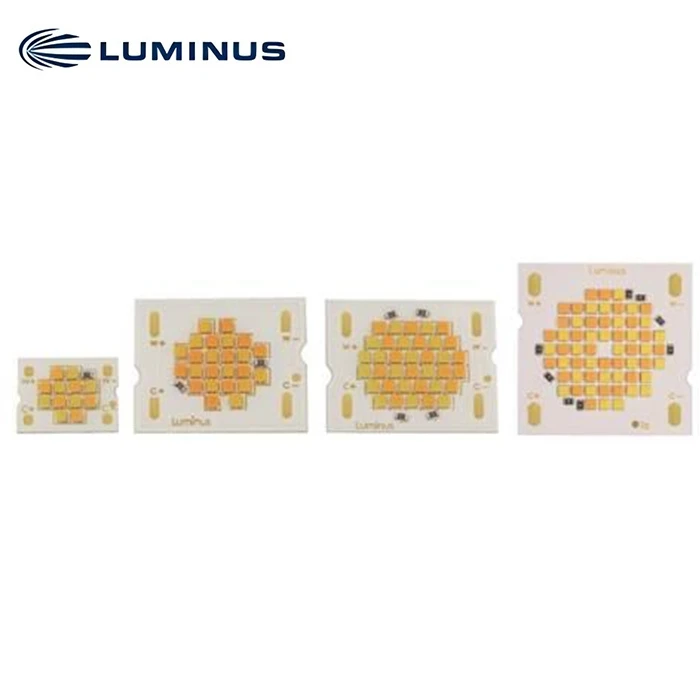

CCT Tunable LED Spot Modules
Features
- Two channel tunable human centric light source
- Enhanced melanopic ratios for circadian health
- MP-1616 XNOVA Cube 90+ CRI LEDs on metal PC board
- 5000K Salud cool channel with high melanopic ratio ~0.95
- 2100K warm channel with melanopic ratio ~0.33
- High lumen density for directional lighting
- Enables system beam angles from 10 to 40 degrees
- Robust design with 9000 hour LM-80 tested MP-1616 series LEDs
- Consistent white light <3 SDCM
- Specified "hot" performance and 100% factory tested at Tj=85°C
Applications
- Human centric lighting
- Circadian lighting in hospitals, offices, or schools
- Public, commercial buildings
- Hospitality / hotel / restaurant lighting
- Residential lighting
- Premium retail lighting
- Ceiling and wall mounted lights
- Multi-function space lighting
Products Families
- CTM-9-5022-90-36-TW01: Typical 7W per channel, 9.5mm LES
- CTM-14-5022-90-36-TW01: Typical 15W per channel, 14.5mm LES
- CTM-18-5022-90-36-TW01: Typical 20W per channel, 17.5mm LES
- CTM-22-5022-90-36-TW01: Typical 32W per channel, 22mm LES
o 5022: CCT range ("5022" = 5000K to 2200K)
o 90: minimum CRI
o "36" = 36V typical voltage
o TW01 = standard configuration
Technical Data
Electrical data @ Tj=85°C
|
Part number |
Nominal forward current per channel |
Nominal input power per channel |
Nominal voltage per channel |
Maximum voltage per channel |
Maximum forward current per channel* |
Maximum input power per channel* |
|
CTM-9-5022-90-36-TW01 |
200mA |
7W |
37V |
39V |
220mA |
9W |
|
CTM-14-5022-90-36-TW01 |
400mA |
15W |
37V |
39V |
440mA |
18W |
|
CTM-18-5022-90-36-TW01 |
550mA |
20W |
37V |
39V |
660mA |
27W |
|
CTM-22-5022-90-36-TW01 |
875mA |
32W |
37V |
39V |
1100mA |
45W |
Photometric Data @ Tj=85°C and Nominal Forward Current:
|
Part number |
CRI (min) |
CCT of cool white |
Minimum flux (lumens) |
Nominal flux (lumens) |
CCT of warm white |
Minimum flux (lumens) |
Nominal flux (lumens) |
|
|
CTM-9-5022-90-36-TW01 |
90 |
5000K |
600 |
675 |
2200K |
540 |
590 |
|
|
CTM-14-5022-90-36-TW01 |
90 |
5000K |
1200 |
1350 |
2200K |
1080 |
1180 |
|
|
CTM-18-5022-90-36-TW01 |
90 |
5000K |
1715 |
1930 |
2200K |
1540 |
1685 |
|
|
CTM-22-5022-90-36-TW01 |
90 |
5000K |
2720 |
3060 |
2200K |
2450 |
2675 |
Chromaticity Bins and Ellipse Definitions @ Tj=85°C:
|
Center Point |
Angle |
3-step Bin |
||||
|
Channel LED CCT |
Actual Nominal CCT |
CIEx |
CIEy |
Θ(°) |
a |
b |
|
2200K |
2125K |
0.5132 |
0.4130 |
45.50 |
0.00976 |
0.00480 |
|
5000K |
4700K |
0.3523 |
0.3595 |
59.37 |
0.00822 |
0.00354 |
Absolute Maximum Ratings & Optical/Electrical Characteristics:
|
Parameter |
Symbol |
Minimum |
Typical |
Maximum |
Unit |
|
Operating case temperature |
Tc |
105 |
°C |
||
|
Junction temperature |
Tj |
125 |
°C |
||
|
Viewing angle |
2(Θ1/2) |
130 |
degrees |
||
|
Reverse voltage |
Vr |
5 |
volts |
||
|
Ambient operating temperature |
Topr |
-40 |
+85 |
°C |
|
|
Storage temperature |
Tsto |
-40 |
+85 |
°C |
|
|
Electrostatic Discharge |
ESD |
4000V |
HBM |
Mechanical Dimensions & Thermal Resistance:
|
Part Number |
Light Emitting Surface (LES) Diameter |
Board Size |
Typical Thermal Resistance (Rthj-c) |
PCB Thickness |
|
CTM-9-5022-90-36-TW01 |
9.5mm |
12x15mm |
1.8 K/W |
1mm |
|
CTM-14-5022-90-36-TW01 |
14.5mm |
20x24mm |
0.67 K/W |
1mm |
|
CTM-18-5022-90-36-TW01 |
17.5mm |
20x24mm |
0.5 K/W |
1mm |
|
CTM-22-5022-90-36-TW01 |
22mm |
28x28mm |
0.4 K/W |
1mm |
