Horticulture LEDS

Luminus Horticulture LEDs offer industry leading performance in term of PPF (Photosynthetic Photon Flux) and PPF/W metrics and come in a variety of package types ranging from mid-power to high power LEDs.

APPLICATIONS

• Top lighting, inter lighting and multi-layer cultivation.
• Urban farming
• Agriculture lighting and algae growth lights

FEATURES

• Extensive range of LED packages with excellent PPF and PPF/W values
• High-power 3535 series offered in 90 and/or 130° viewing angle at 50% Iv
• Low Thermal Resistance
• Built-in ESD Protection
• RoHS and REACh compliant

Overview

• 3535 packaging solution covering wavelengths from UV (365nm) to Far Red (730nm) for high power applications
• Plant-specific spectrums in COB package
• High PPF efficacy mid-power LEDs for cost-constrained horticulture fixtures

SST SERIES SELECTOR GUIDE

Product Image	Product	Color	Package	Max Drive Current	Optical Output	Status
	SST-10-UV	365 nm	SMT 3.45 mm x 3.45 mm	1.0 A	0.7 W - 0.9 W	Active
		385 nm			0.9 W - 1.2 W
		395 nm			0.9 W - 1.2 W
		405 nm			0.8 W - 1.0 W
	SST-10-B	Blue (452.5 nm)	SMT 3.45 mm x 3.45 mm	1.5 A	590 - 750 mW (0.35 A)	Active
	SST-20-B	Blue (450 nm)	SMT 3.45 mm x 3.45 mm	3.0 A	630 - 830 mW (0.35 A)	Active
	SST-10-SB	Sky Blue (470 nm)	SMT 3.45 mm x 3.45 mm	1.5 A	470 - 590 mW (0.35 A)	Active
	SST-10-G	Green (527 nm)	SMT 3.45 mm x 3.45 mm	1.5 A	230 - 390 mW (0.35 A)	Active
	SST-10-R	Red (621 nm)	SMT 3.45 mm x 3.45 mm	1.5 A	270 - 430 mW (0.35 A)	Active
	SST-10-DR	Deep Red (660 nm)	SMT 3.45 mm x 3.45 mm	1.5 A	270 - 430 mW (0.35 A)	Active
	SST-20-DR Gen 2	Deep Red (660 nm)	SMT 3.45 mm x 3.45 mm	2.0 A	870 - 1070 mW (0.70 A)	Active
	SST-20-DR Gen 3	Deep Red (660 nm)	SMT 3.45 mm x 3.45 mm	2.0 A	990 - 1110 mW (0.70 A)	Active
	SST-10-FR	730 nm	SMT 3.45 mm x 3.45 mm	1.5 A (CW)	1.27 W	Active
	SFT-12R-WES-A (3535 Package)	White 5000 - 6500 K CRI 70	SMT 3.45 mm x 3.45 mm	3 A	841 - 938 lm (3 A)	New Product
	SFT-12R-WES-F (5050 Package)	White 5000 - 6500 K CRI 70	SMT 5.0 mm x 5.0 mm	3 A	841 - 938 lm (3 A)	New Product
	SFT-25R-WES-A	White 5000 - 6500 K CRI 70	SMT 3.45 mm x 3.45 mm	7.5 A	1,934 - 2,156 lm (7.5 A)	New Product
	SFT-25R-WES-F (5050 Package)	White 5000 - 6500 K CRI 70	SMT 5.0 mm x 5.0 mm	7.5 A	1,934 - 2,156 lm (7.5 A)	New Product
	SFT-25R-WG	White 5700K CRI > 90	SMT 3.45 mm x 3.45 mm	5 A	1,082 - 1,205 lm (5 A)	New Product

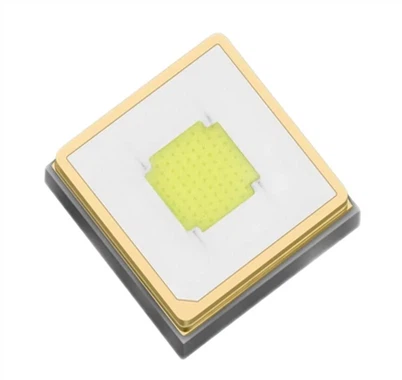

	SFT-40-WxH	White 2700K, 3000 K CRI 95	SMT 5.0 mm x 5.0 mm	4 A	774 - 905 lm (4 A)	Active
	SFT-40-WES Gen 2	White 5000 - 6500 K CRI 70	SMT 5.0 mm x 5.0 mm	8 A	2,250 - 2,500 lm (3 A)	Active
	SFT-40-WxS	White 5000 - 6500 K CRI 70	SMT 5.0 mm x 5.0 mm	8 A	2,128 - 2,411 lm (8 A)	Discontinued
	SFT-70X-WES Gen 2	White 5000 - 6500 K CRI 70	SMT 5.0 mm x 5.0 mm	7 A (6 V) 3.5 A (12 V)	3,632 - 4,128 lm (7 A)	New Product
	SFT-70X-WxS	White 5000 - 6500 K CRI 70	SMT 5.0 mm x 5.0 mm	7 A (6 V) 3.5 A (12 V)	3,494 - 4,025 lm (7 A)	Discontinued
	SFT-90X-W	White 6500K CRI 70	SMT 7.00 mm x 7.00 mm	20 A	5,176 - 5,889 lm (20 A)	New Product
	SST-12-WxS	White 5000 - 6500 K CRI 70	SMT 3.45 mm x 3.45 mm	2.4 A	700 - 797 lm (2.4 A)	Active
	SST-12-WxH	White 2700 - 4000 K CRI 95	SMT 3.45 mm x 3.45 mm	1.5 A	324 - 395 lm (1.5 A)	Active
	SST-20F-W-AL	White 2700 - 6500 K CRI 70, 80, 90, 95	SMT 3.55 mm x 3.55 mm	1.5 A	367 - 678 lm (1.5 A)	New Product
	SST-20F-W-AH	White 3000K - 6500K CRI 70, 80	SMT 3.55 mm x 3.55 mm	2.5 A	838 - 1,065 lm (2.5 A)	New Product
	SST-20V-WES	White 4000 - 6500K CRI 70	SMT 3.45 mm x 3.45 mm	3.0 A	1,078 - 1,189 lm (3.0 A)	New Product
	SST-20V-WF	White 3000 - 6500 K CRI > 80	SMT 3.45 mm x 3.45 mm	3.0 A	950 - 1050 lm (3.0 A)	New Product
	SST-20V-WG	White 5000 - 5700 K CRI > 90	SMT 3.45 mm x 3.45 mm	2 A	633 - 705 lm (2 A)	New Product
	SST-20-WH Gen 2	White 2700 - 4000 K CRI 95	SMT 3.45 mm x 3.45 mm	2 A	468 - 621 lm (2 A)	Active
	SST-20-WS Gen 2	White 5000 – 6500 K CRI 70	SMT 3.45 mm x 3.45 mm	3 A	1,037 - 1,224 lm (3 A)	Active
	SST-20-WxS	White 5000 – 6500 K CRI 70	SMT 3.45 mm x 3.45 mm	3 A	983 - 1,184 lm (3 A)	Discontinued
	SST-20-WxH	White 2700 – 4000 K CRI 95	SMT 3.45 mm x 3.45 mm	2 A	426 - 554 lm (2 A)	Active
	SST-25-WES	White 5000 - 6500 K CRI 70	SMT 3.55 mm x 3.55 mm	3.75 A	1,394 - 1,558 lm (3.75 A)	Active
	SST-36F-W-AL	White 5000 - 6500 K CRI 70	SMT 3.55 mm x 3.55 mm	3.0 A	1,210 - 1,353 lm (3.0 A)	New Product
	SST-40-WS Gen 2	White 5000 - 6500 K CRI 70	SMT 5.0 mm x 5.0 mm	6 A	1,978 - 2,225 lm (6 A)	Active

COB SERIES SELECTOR GUIDE

Product Image	Product	Color	Package	Max Drive Current	Optical Output	Status
	CXM-14	Purple	COB package 19 mm * 19 mm (AC) 14.3 mm LES	1,440 mA	40 ~ 72 (μmol/s)	Active
	CXM-14	Plant White	COB package 19 mm * 19 mm (AC) 14.3 mm LES	1,440 mA	40 ~ 72 (μmol/s)	Active
	CLM-22	Purple	COB package 28 mm * 28 mm (AC) 22 mm LES	2,200 mA	60 ~ 115 (μmol/s)	Active
	CLM-22	Plant White	COB package 28 mm * 28 mm (AC) 22 mm LES	2,200 mA	60 ~ 115 (μmol/s)	Active
	CXM-22	Purple	COB package 28 mm * 28 mm (AC) 22 mm LES	2,200 mA	90 ~ 165 (μmol/s)	Active
	CXM-22	Plant White	COB package 28 mm * 28 mm (AC) 22 mm LES	2,200 mA	90 ~ 165 (μmol/s)	Active
	CXM-32	Plant White	COB package 38 mm * 38 mm (AC) 32 mm LES	4,400 mA	200 ~ 360 (μmol/s)	Active

SPECIALTY ILLUMINATION SERIES SELECTOR GUIDE

Product Image	Package Platform	Voltage (V)	Current (mA)	Input Power (W)	TYP FLUX (lm), 3000k, 80CRI	TYP lm/W, 3000k, 80CRI
	NEW MP-3030-110H	2.8	65	0.182	33	181
	NEW MP-3030-12ZH	2.67	65	0.173	33.5	193
	NEW MP-3030-210H	6.0	150	0.9	140	156
	MP-5050-8100	24	200	4.8	630	131
	NEW CUBE-1616-1103	3.0	150	0.45	62	138
	NEW CUBE-1616-2103	6.0	150	1.0	118	131
