OSRAM OSTAR® Projection Compact LE R Q8WP-LBMA-34-0-A40-R18-Z 625nm Red 1.4A-Calibrated 140–224lm-Class 3.9×3.65mm LED
Package & Size: 3.90 mm × 3.65 mm, 1.35 mm height, 3-SMD no-lead surface mount, 120° viewing angle, low-profile compact design;
Color & Wavelength: Red, dominant 625 nm, emission range 612–630 nm;
Test Condition: 1.4 A / 2.16 V (typ.), flux 140–224 lm (182 lm typical), efficacy approx. 17 lm/W, electrical power approx. 3.0 W;
Drive & Reliability: 5 A max current; AEC-Q102 automotive qualified; −40°C to +100°C operating range;
Lifecycle Status: ams OSRAM official listing in full production (Q65113A2444); channel part status Active; standard lead time approx. 16 weeks.
Description
Product Introduction
The LE R Q8WP-LBMA-34-0-A40-R18-Z belongs to ams OSRAM's OSTAR® Projection Compact family-a 625 nm red, 3.9 mm × 3.65 mm surface-mount high-power LED. The OSTAR Projection Compact name states its design intent: achieve as much brightness density as possible within the most compact footprint, serving projection, stage lighting, machine vision, and architectural wall-washing-applications that need "light projected precisely outward," not broad flood illumination. The 3.9 × 3.65 mm footprint and 1.35 mm low-profile design make it easy to integrate into compact projector optical engines and stage fixture light engines, and the 120° emission angle leaves design room when paired with collimating lenses or light tunnels.
The electrical profile is the core information here. At the 1.4 A calibration point, a 2.16 V typical forward voltage corresponds to roughly 3.0 W electrical power, with flux landing in the 140–224 lm window, 182 lm typical. Its efficacy (roughly 17 lm/W) may look modest, but that is typical of high-power red devices-the dimension to evaluate is not "lumens per watt," but how much usable red flux can be coupled into the target optical system. The 5 A maximum current means more than three times the drive headroom between 1.4 A and 5 A, leaving design flexibility for projection and stage applications that need short-duration high brightness. AEC-Q102 automotive qualification and the −40°C to +100°C operating range indicate a reliability baseline above ordinary commercial LEDs, suited to professional equipment with long-term stability requirements.
On supply, ams OSRAM lists full production, channel status is Active, and standard lead time is roughly 16 weeks-suitable for routine material planning. For module makers, fixture manufacturers, and distributors, the core judgment is not "can we buy it," but "how much red flux does the projection or stage optical system need, is the 1.4 A to 5 A drive elasticity worth cashing with thermal design, and does the 3.9 × 3.65 mm footprint fall within the target light engine's mechanical and thermal interface."
Key Product Features
- High red brightness density in a compact footprint: The 3.90 × 3.65 mm package delivers 140–224 lm of red flux at 1.4 A, 182 lm typical. For projection optical engines and stage beam fixtures where light-engine space is extremely limited, high brightness density means the target illuminance can be reached with a smaller lens aperture or shorter optical path-rather than stacking multiple low-power red devices to compensate.
- 1.4 A calibration with 5 A maximum for drive elasticity: 1.4 A is the calibration test point, and the 5 A ceiling leaves more than three times the headroom for short-duration high-brightness pulses in projection and stage scenarios. This elasticity lets the same device serve different power tiers-for example, a stage fixture's "full-on" mode versus a projector's steady-state operation-without changing part numbers. But cashing this headroom requires matching thermal design and driver output capability; designing to the 5 A ceiling based on the nominal figure alone is not appropriate.
- AEC-Q102 automotive qualification with −40°C to +100°C operation: The red version of OSTAR Projection Compact carries automotive qualification, meaning its reliability testing covers thermal cycling, high-temperature/high-humidity, and similar stress conditions-suited to professional projection and stage equipment with explicit long-term stability requirements, not just mild indoor consumer environments.
- 1.35 mm low-profile design with 3-SMD no-lead package: At 1.35 mm height within a 3.9 × 3.65 mm footprint, this sits in the compact tier for space-constrained light engines. The 3-SMD no-lead package is a mature process on professional fixture SMT lines, with reference pad and stencil designs available, so package-level changes during sourcing switches are typically manageable.
- Official full production with a 16-week standard lead time for a routine procurement rhythm: Unlike parts requiring last-window scrambling or supply-divergence management, this device is currently in stable production. The roughly 16-week standard lead time can be planned into material schedules for projection and stage fixtures that typically follow project-based production rhythms-without reactive stockpiling or replacement hunting around uncertainty.
| Item | Value |
| Manufacturer | ams OSRAM |
| Series | OSRAM OSTAR® Projection Compact |
| Package | 3-SMD,3.90 × 3.65 mm,高度 1.35 mm |
| Color | Red(612–630 nm) |
| Dominant Wavelength | 625 nm |
| Flux @ 1.4 A, 25°C | 140 – 224 lm |
| Vf (Typ.) | 2.16 V |
| Max Current | 5 A |
| Viewing Angle | 120° |
| Top & Qualification | −40°C - +100°C;AEC-Q102 |
Application Scenarios
OSTAR Projection Compact's official application directions clearly point to projection, stage lighting, machine vision, and architectural lighting (such as wall washers). Combined with 625 nm red, 1.4 A calibration, 5 A maximum current, and the 3.9 × 3.65 mm compact footprint, this device maps to scenarios that need "directional projection, high red flux, and a compact optical engine":
- Projector optical engines and RGB combining engines: OSTAR Projection Compact's compact footprint and high brightness density make it a candidate for the red channel in pico and compact projector optical engines. 625 nm red combines with green and blue channels to form the projected image, and the 1.4 A steady-state drive with 5 A pulse headroom balances brightness output and thermal control. For projects already designed around the 3.9 × 3.65 mm footprint, package size and thermal interface continuity are the first conditions to confirm during landing or capacity expansion.
- Stage beam fixtures and spotlights: Stage fixtures need to generate high-intensity colored beams within limited light-engine space. 625 nm red is used in beam lights, wash lights, and spotlights for color mixing and effect projection, and the 5 A maximum leaves drive room for short-duration "strobe" or "full-on" modes. The AEC-Q102-level reliability baseline also suits stage equipment's long-term stable-operation requirements.
- Architectural wall washing and landscape lighting: Official materials mention OSTAR Projection Compact's practicality in architectural lighting equipment such as wall washers. 625 nm red provides color emphasis and ambiance on building facades, landscape outlines, and commercial plazas, and the 1.35 mm low-profile design allows multi-emitter arrays to be arranged in compact wall-washer fixtures without excessive optical depth.
- Machine vision and industrial inspection: Red light is commonly used in machine vision for contrast enhancement on specific materials and surface defect detection. OSTAR Projection Compact's high brightness density and compact footprint suit integration into industrial camera light sources or inspection modules, and the AEC-Q102 reliability background provides a reference test baseline for temperature swings and continuous operation in industrial environments.
Why Choose Gainer LED?
- 14 years in LED distribution with practical judgment on the selection logic of "projection/stage high-power red": OSTAR Projection Compact is not a general lighting device that can be evaluated on "lumens per watt"-its value lies in coupled flux and brightness density within the target optical system. Gainer has handled requirements for projector light engines, stage fixtures, and machine vision sources during routine selection support and can help customers refine "I need a red LED" into "what red flux, how small an emitting area, and which drive tier between 1.4 A and 5 A"-rather than sourcing by wavelength and package alone.
- Hands-on experience in separate delivery lines for AEC-Q102 automotive-grade materials and professional equipment materials: This red device carries automotive qualification, but its actual use may span projection, stage, and industrial inspection. Gainer can match the delivery path to the customer project's qualification and documentation requirements-rather than shipping an automotive-grade red LED with consumer-material logistics logic and leaving documentation gaps to surface at audit or reliability validation.
- Small-batch sample support for a "validate optical coupling efficiency before committing to volume" professional equipment rhythm: Projection and stage light-engine designs are highly customized; datasheet flux and emitting-area dimensions are only a starting point, and the real judgment requires observing coupling efficiency and spot quality in the customer's own collimating lens or combining structure. Gainer supports small-batch R&D sample purchases, letting customers complete optical validation with a small set of samples-without committing to a 1,000 pcs full reel just to try one red device.
- One-stop matching advice for LED and collimating/combining optics: OSTAR Projection Compact's 3.9 × 3.65 mm footprint and 120° emission angle have specific entrance-aperture and numerical-aperture matching requirements when paired with collimating lenses, light tunnels, or combining prisms. Gainer covers LEDs and optical accessories and can provide matching direction during selection, cutting the time spent shuttling samples and parameters between emitter and optics suppliers.
- Stable replenishment for an active part with lot-consistency management: This device is officially in full production with Active channel status and a roughly 16-week standard lead time-a part number that can go into project production schedules. Gainer ships in original reels or cut tape with bin labels preserved, supporting bin management in multi-emitter combining or array applications-reducing the impact of lot-to-lot red flux variation on projection white balance or stage color consistency.
FAQ
Q: This red LED's efficacy is only about 17 lm/W-much lower than white-so where does its value lie in projection or stage applications?
A: High-power red devices are evaluated on different dimensions than white. 17 lm/W is "human-perceived lumen output divided by electrical power," but red's value in projection and stage is not "illuminating a space"-it is coupling sufficient red flux into the target optical system and precisely combining it with green and blue. OSTAR Projection Compact's high brightness density (140–224 lm from a 3.9 × 3.65 mm emitting area) means the projector light engine can collect enough red with a smaller lens aperture, rather than compensating for a dim source with a larger optical system. Judging it against white on lm/W alone misses its real advantage in compact light engines.
Q: 1.4A is the calibration point, but the maximum is 5A-can I design stage fixture strobe or full-on modes directly at 5A?
A: 5 A should not be the starting point for steady-state or long-pulse designs. 5 A is the device's absolute ceiling under specific junction-temperature conditions, and while stage "strobe" or "full-on" modes are short-duration, heat accumulation may not dissipate between repeated pulses, causing junction temperature to climb progressively. A more reasonable approach is to start at the 1.4 A calibration point, measure or estimate junction temperature under pulsed conditions in the actual fixture's thermal structure, and increase peak current and pulse width only after confirming thermal headroom. Designing directly at 5 A may "look normal" in a single lab test but trigger overheating or accelerated lumen depreciation during continuous strobe in a real performance scenario.
Q: As a distributor, this OSTAR Projection Compact red is active but has a ~16-week lead time-how should stocking strategy differ from general white SKUs?
A: Stocking logic for professional projection and stage red differs entirely from general white. General white is often stocked by historical turnover, while OSTAR Projection Compact demand tends to follow projects-a projector model or stage fixture model may have a multi-year lifecycle, but individual purchase quantities are concentrated and the rhythm is set by the customer's production schedule. A 16-week lead time means replenishment cannot wait for customer orders; capacity or inventory must be locked in advance against confirmed project forecasts. Hold safety stock against the customer project's annual volume and production rhythm, not "how much sold last month"; also watch whether other bins in the family (such as LAMA-34, 112–224 lm) can serve as brightness-window alternatives, but confirm optical-system coupling efficiency still matches before landing.
Q: What practical meaning does AEC-Q102 qualification have for my non-automotive projection or stage project?
A: AEC-Q102 covers automotive-grade stress tests-thermal cycling, high-temperature/high-humidity, vibration, and similar. For projectors and stage fixtures, the value is not "you must use it" but "a higher reliability baseline." Projector light engines operate in sealed spaces where internal temperatures can far exceed ambient; stage fixtures may experience frequent on/off cycles and transport vibration. The AEC-Q102 test background means the device's behavior under these stresses has a third-party standard as reference, reducing your own long-cycle reliability validation workload. If the project environment is mild indoor fixed installation, the qualification may not justify a premium, but it explains why this 3.0 W red device carries tighter package and test specifications than ordinary commercial LEDs.
Q: The standard pack is 1,000 pcs-can I get small samples for optical coupling validation, and what information should I provide?
A: Yes. Channel pages list this part in Tape & Reel with a 1,000 pcs standard pack, but distribution channels typically offer Cut Tape or break quantities. Optical coupling validation usually needs only a few to a few dozen pieces-confirm break-quantity minimums and lead time directly with your supplier. To get the right samples the first time, state three things when requesting: your optical system type (projector light engine, stage beam fixture, or wall washer), target red flux and combining method (whether precise overlay with green/blue channels is required), and whether the existing mechanical interface footprint and height constraints are already designed for 3.9 × 3.65 mm / 1.35 mm. If the mechanical structure was prepared for a different package, mentioning it upfront avoids receiving samples that will not fit the light engine and wasting validation time on structural revisions.
Hot Tags: OSRAM OSTAR® Projection Compact LE R Q8WP-LBMA-34-0-A40-R18-Z 625nm Red 1.4A-Calibrated 140–224lm-Class 3.9×3.65mm LED, China OSRAM OSTAR® Projection Compact LE R Q8WP-LBMA-34-0-A40-R18-Z 625nm Red 1.4A-Calibrated 140–224lm-Class 3.9×3.65mm LED manufacturers, suppliers, factory, SFH 203, SFH 203 FA, GW JTLPS1 CM JNKN XX55 1, for osram led, LE RTDUW S2WN KBLA 1 MANA P AXAZ P MBNB CQ, GW QSLMS1 KM H6H8 XX31 1
Send Inquiry
You Might Also Like
-

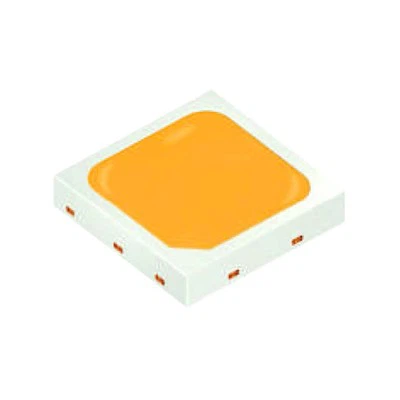

OSRAM DURIS® S 5 GW PSLT33.EM-LVL1-XX57-1-150-G3-R18...
-
