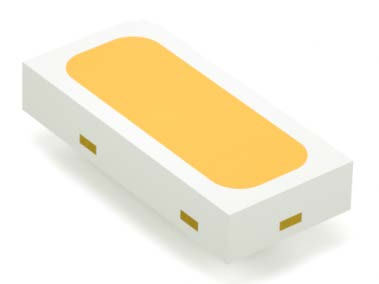

RF-A3F30-WYSJ-A8
Characteristics of the - Vertical table mount package; - EMC material, package size 3.0*1.4*0.52mm; - AEC-Q102 authentication.
Description
1.1General Description
The Yellow LED, which was fabricated by using a blue chip and the phosphor.
Product Package: 3.00mmX1.40mmX0.52mm.
1.2Features
► EMC Package.
►Extremely wide viewing angle.
►Available on tape and reel.
►Suitable for all SMT assembly and solder process.
►Moisture sensitivity level: Level 2.
►RoHS compliant.
►Qualifications: The product qualification test plan is based on the guidelines of AEC-Q102 Stress Test Qualification for Automotive Grade Discrete Semiconductors
1.3Application
► Automotive Lighting Interior and Exterior.
|
Product |
Power |
Color |
Ta @25℃(TYP.) |
Max current (mA) |
viewing angle (°) |
ESD withstand voltage()HBM |
automotie standard |
|||
|
IF(mA) |
vf(V) |
Flux/Iv |
XY/Wd |
|||||||
|
RF-A1F30-W1FD-B1 |
0.4W |
White(Regular color gamut) |
120 |
2.8-3.2 |
42.5-45.2-48.4-51.7 |
B2/B3/B4/B5 |
180 |
120° |
8000 |
AEC-Q102 |
|
RF-A1F30-W1ED-B1 |
0.4W |
White(high color gamut) |
120 |
2.8-3.2 |
39.8-42.5-45.2-48.4 |
AD/BD/AE/BE/AF/BF |
180 |
120° |
8000 |
AEC-Q102 |
|
RF-A1F30-W1FN-B1 |
0.3W |
White(Regular color gamut) |
80 |
2.7-3.1 |
28.7-30.6-32.7-34.8-37.3 |
B2/B3/B4/B5 |
180 |
120° |
8000 |
AEC-Q102 |
|
RF-A3F30-W578-A8 |
0.2W |
White |
50 |
2.6-3.2 |
19.6-21.8-24.2-26.9 |
ZG0/ZG1 |
200 |
120° |
8000 |
AEC-Q102 |
|
RF-A3F30-W57J-A8 |
0.5W |
White |
140 |
2.8-3.4 |
45.3-50-55.3-61.2-67.8 |
ZG0/ZG1 |
200 |
120° |
8000 |
AEC-Q102 |
|
RF-A3F30-WYSJ-A8 |
0.5W |
PC Amber |
140 |
2.7-3.1 |
30-33.4-37-40.9-45.3 |
5E |
200 |
120° |
8000 |
AEC-Q102 |
