EUCHIPS US Standard 0-10V & Triac/ELV Integrated Dimmable LED Power Supply
Leave a message

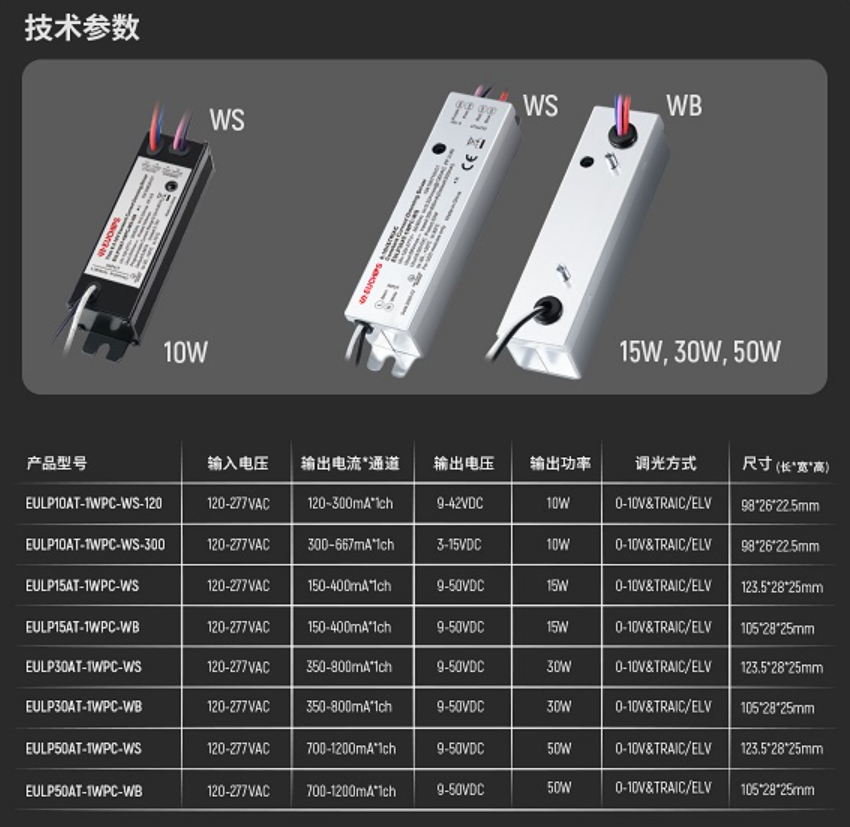

EUCHIPS introduces a US standard 0-10V & Triac/ELV integrated dimmable LED power supply, covering mainstream power ranges of 10W, 15W, 30W, and 50W. With programmable precision control, flexible installation structure, multiple safety protections, and long-term stable performance, it provides a highly adaptable dimming drive solution for commercial and residential lighting in the North American market.
I. Software Programmable Drive, Precise Parameter Customization
This dimmable LED power supply features a programmable control core, allowing for one-click configuration of core parameters via a dedicated programmer to meet refined dimming needs.

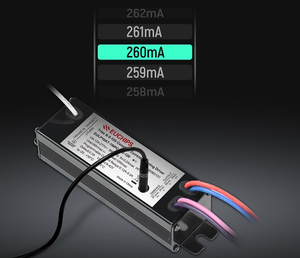

- 1mA Current Adjustment: The output current supports 1mA step adjustment, such as 262mA, 261mA, 260mA, etc., continuously adjustable to adapt to different LED chip characteristics, resulting in superior brightness consistency.

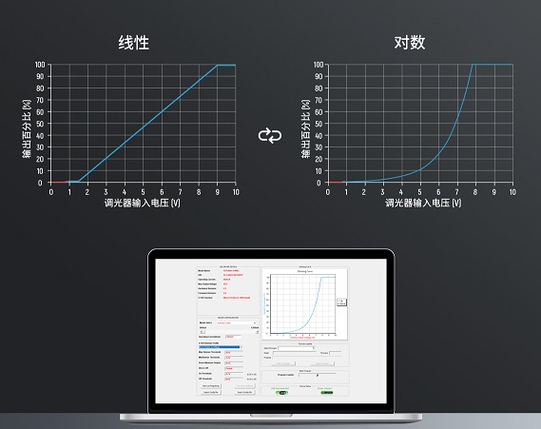

- Customizable Dimming Curves: Linear, logarithmic, and custom curves can be flexibly configured to match the lighting preferences of scenarios such as hotels, shopping malls, and exhibition halls, ensuring smoother dimming transitions.
- Dimming Depth from 0.5%: The minimum dimming depth can be customized within the **0.5%–10%** range, providing flicker-free low-brightness lighting to meet the extreme low-light requirements of night lights, ambient lights, etc.
II. Dual-Outlet Design for Greater Scene Adaptability

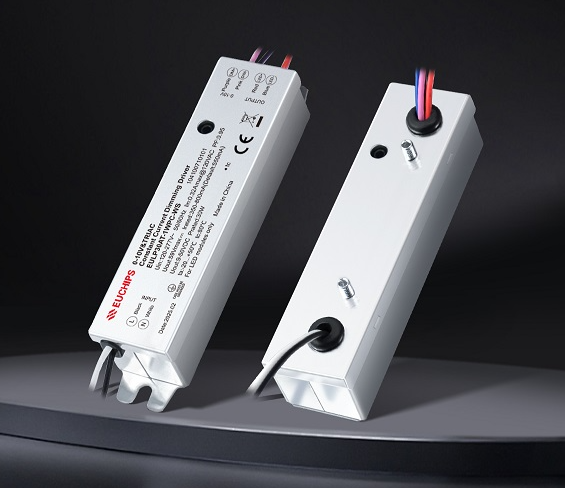

The product supports both side-outlet and bottom-outlet wiring options. The Dimmable LED Power Supply can be easily embedded in downlights, spotlights, panel lights, magnetic track lights, and other lighting fixtures, adapting to limited installation spaces, simplifying wiring, and improving project implementation efficiency.
III. Multiple Safety Protections for Enhanced
Long-Term Reliability
Built-in comprehensive protection mechanisms ensure stable operation of the Dimmable LED Power Supply around the clock.
- Short Circuit Protection: Quickly cuts off output in case of abnormal short circuits, preventing damage to the lamp and driver.
- Overload Protection: Automatically limits current when the load exceeds the limit, preventing overheating failure.
- Overvoltage Protection: Suppresses voltage surges, protecting the LED light source and circuit safety.
- Flicker-free Healthy Light: Utilizes a low-ripple design, eliminating visible flicker throughout, protecting visual health, and meeting high-quality lighting standards for both commercial and residential use.
- Long Lifespan + Extended Warranty: Rated lifespan of 50,000 hours, with a 5-year warranty, reducing later maintenance costs and providing greater peace of mind for projects.
- Compact Size and Easy Installation: Compact structure adapts to metal junction boxes and ultra-thin lamp bodies, meeting the needs of recessed and integrated lighting designs in the North American market.
The newly launched 0-10V&Triac/ELV 2-in-1 Dimmable LED Power Supply meets US standard certification requirements such as UL, features a wide voltage input of 120–277V, and is compatible with mainstream dimming systems in North America. One power supply covers multiple scenarios and multiple dimmers, effectively reducing SKUs and lowering inventory costs.
