High Maintenance Costs For Streetlights? Lifud’s IP67 Isolated Outdoor LED Driver Alleviates O&M Pressure For Projects.
Leave a message
Lifud LF-A1 Series
Streetlight project costs extend beyond the procurement phase
In roadway, campus, and municipal renovation projects, buyers often prioritize fixture pricing, luminous efficacy, and delivery schedules during the initial stages, while underestimating long-term operation and maintenance (O&M) costs. In reality, outdoor streetlights are constantly exposed to rain, dust, temperature extremes, grid fluctuations, and thunderstorms. If the power supply fails, it often results in total fixture blackout, requiring manual inspections, high-altitude maintenance work, and handling project complaints.
For engineering projects, a stable LED driver is not merely an accessory; it is a critical component that determines the lifespan of the entire fixture and the frequency of maintenance. Especially in large-scale outdoor lighting installations, the reliability of the driver directly impacts long-term maintenance costs.

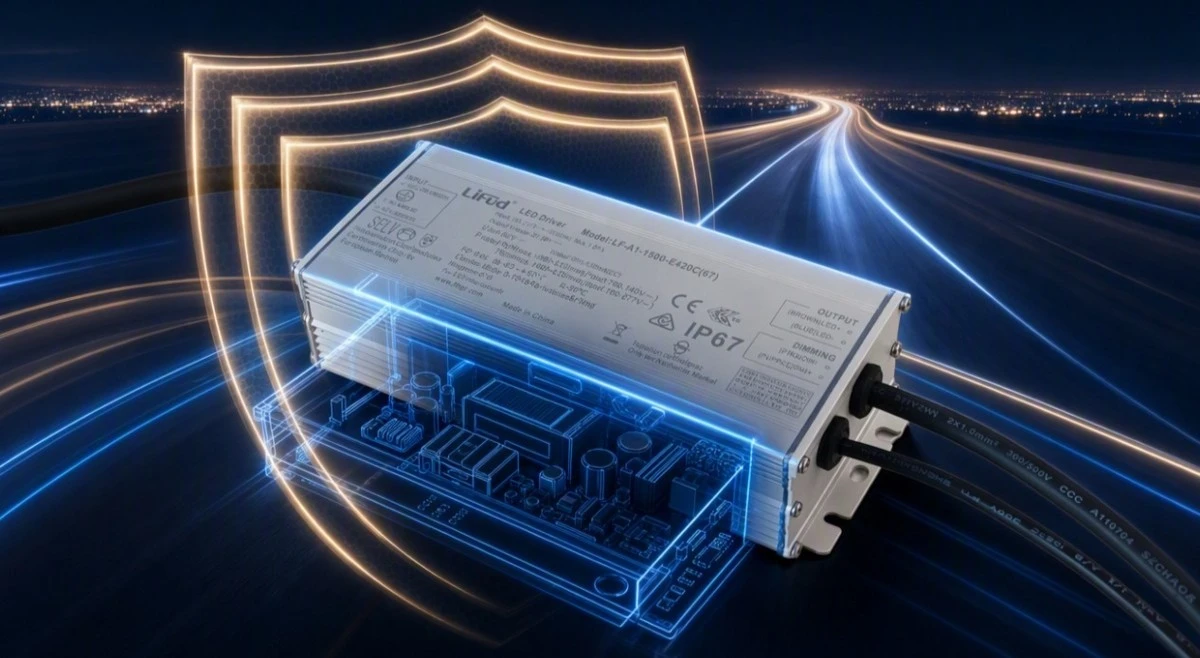

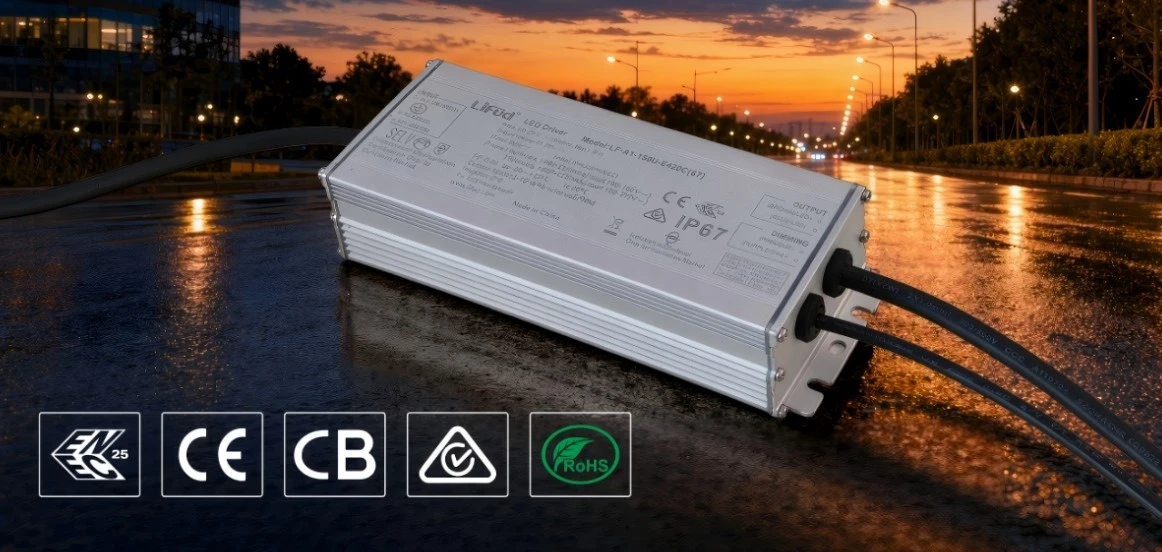

Lifud LF-A1 Series: An isolated driver solution for outdoor streetlights.
According to Lifud's product specifications, the LF-A1 series comprises 40–240W IP67 isolated drivers designed for diverse outdoor LED lighting applications. Covering the standard power ranges for streetlights, the series is suitable for roadways, residential complex paths, industrial parks, parking lots, landscape lighting, and other outdoor public lighting projects.
For customers sourcing LED components and lighting hardware, the value of this type of driver lies not just in individual specifications, but in its ability to maintain stable output in complex environments, thereby reducing the need for repeated maintenance caused by driver failures.
Key Advantages

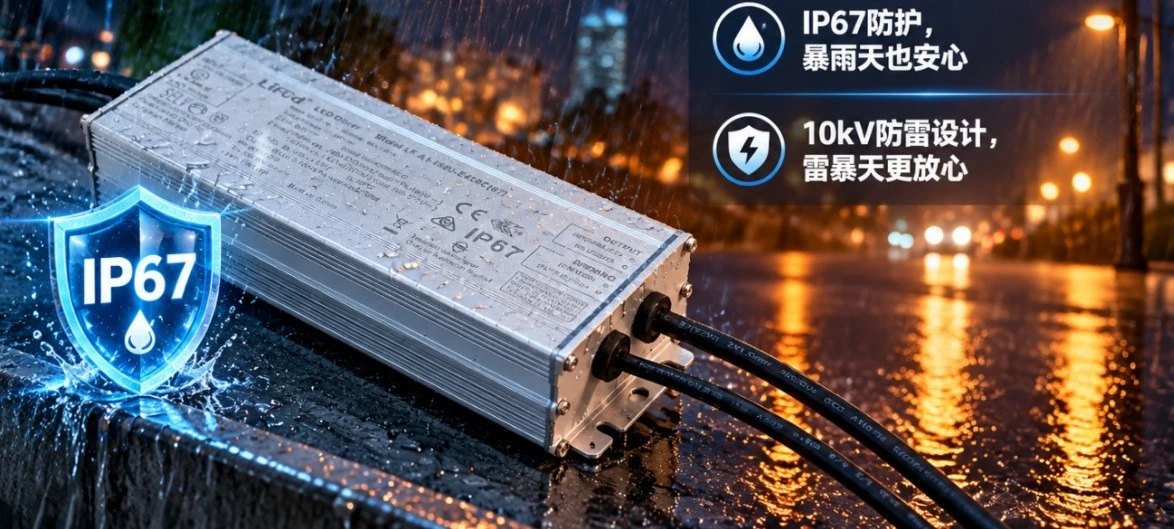

Advantage 1: IP67 protection for harsh outdoor environments.
Outdoor lighting products are constantly exposed to rain, moisture, dust, and significant diurnal temperature fluctuations. If the driver housing lacks adequate protection, internal components are susceptible to moisture, corrosion, or short circuits, which compromise the operational stability of the entire fixture.
The LF-A1 series features an IP67-rated design, offering superior resistance to rain, snow, dust, and humidity. It is ideal for installation on outdoor poles, within streetlight housings, and in other highly exposed locations. For coastal regions, areas with high rainfall, and industrial parks with heavy dust, the IP rating is often a key metric used by purchasers to evaluate power supply reliability.
Advantage 2: Wide input voltage range (90–305Vac) to mitigate grid fluctuation risks
Grid stability varies across different countries, regions, and project sites. Road lighting projects often face challenges such as voltage fluctuations, long cable runs, and fluctuating loads throughout the night. An inadequate input voltage range can lead to flickering, outages, or a shortened lifespan.
The LF-A1 series supports a wide input voltage range of 90–305Vac, allowing it to adapt to diverse grid environments. For export-oriented LED lighting projects and cross-regional applications, this feature helps minimize compatibility risks arising from varying on-site voltage conditions.
Advantage 3: 10kV lightning protection design to withstand surges during thunderstorms
Streetlights are typically installed on open roads or tall poles, making them highly susceptible to surge impacts during thunderstorms. Insufficient surge immunity in the power supply can lead to widespread failures, placing a heavy maintenance burden on contractors and end-users.
The LF-A1 series features a 10kV lightning protection design, making it ideal for streetlight projects that demand high outdoor reliability. Lightning immunity is a critical factor when selecting power supplies for applications such as municipal roads, rural road upgrades, and main thoroughfares in industrial parks.
Advantage 4: Supports dimming control to meet energy-saving requirements
Modern road lighting projects increasingly prioritize energy efficiency and intelligent control. Traffic and pedestrian volumes vary throughout the night; if a lighting system operates at full power continuously, it increases energy consumption and can shorten the lifespan of certain components.
This series supports dimming methods such as 0-10V and PWM. It can be integrated with timer controls, sensors, or lighting management systems to enable on-demand lighting. For smart streetlights, campus lighting, and energy-saving retrofit projects, dimming capabilities help balance lighting performance with operational costs.
Advantage 5: Multiple protection mechanisms to enhance overall system stability
Outdoor streetlight systems are prone to various faults, including over-temperature, over-voltage, under-voltage, and short-circuit conditions. A robust power supply protection mechanism ensures greater safety and stability for the entire lighting system under abnormal operating conditions.
The LF-A1 series features a multi-layered protection design and supports a wide range of operating conditions, making it suitable for long-term outdoor use. For large-scale projects, these protective features help mitigate the risk of single-point failures cascading into wider issues and enhance the overall reliability rating of the lighting fixtures.
Gainer LED's Selection Advice: Matching the Power Supply to LED Components and Project Environment
| Model No. | Input Voltage V | Output Power W | Output Voltage V | Output Current A | Efficiency (Full Load) | PF | Dimension LWH/mm |
|---|---|---|---|---|---|---|---|
| LF-A1-040U-E080C(67) | 90-305 | 40 | 36-72 | 0.3-0.8 | 89% | 0.95 | 120*66*37 |
| LF-A1-060U-E110C(67) | 90-305 | 60 | 43-90 | 0.3-1.1 | 90% | 0.95 | 120*66*37 |
| LF-A1-075U-E105C(67) | 90-305 | 75 | 54-108 | 0.3-1.05 | 91.5% | 0.95 | 130*66*37 |
| LF-A1-100U-E105C(67) | 90-305 | 100 | 72-144 | 0.3-1.05 | 92% | 0.95 | 135*66*37 |
| LF-A1-150U-E105C(67) | 90-305 | 150 | 108-214 | 0.3-1.05 | 92% | 0.95 | 170*66*39 |
| LF-A1-200U-E105C(67) | 90-305 | 200 | 156-286 | 0.3-1.05 | 94% | 0.95 | 177*66*39 |
| LF-A1-240U-E105C(67) | 90-305 | 240 | 171-343 | 0.3-1.05 | 94% | 0.95 | 192*66*39 |
| LF-A1-040U-E110C(67) | 90-305 | 40 | 27-56 | 0.3-1.1 | 89% | 0.95 | 120*66*37 |
| LF-A1-060U-E167C(67) | 90-305 | 60 | 27-56 | 0.35-1.67 | 89% | 0.95 | 120*66*37 |
| LF-A1-075U-E210C(67) | 90-305 | 75 | 27-56 | 0.8-2.1 | 89% | 0.95 | 130*66*37 |
| LF-A1-100U-E280C(67) | 90-305 | 100 | 27-56 | 1.3-2.8 | 90% | 0.95 | 136*66*37 |
| LF-A1-150U-E420C(67) | 90-305 | 150 | 27-56 | 1.8-4.2 | 91.5% | 0.95 | 170*66*39 |
| LF-A1-200U-E560C(67) | 90-305 | 200 | 27-56 | 2.6-5.6 | 93.5% | 0.95 | 177*66*39 |
| LF-A1-240U-E670C(67) | 90-305 | 240 | 27-56 | 3.5-6.7 | 93.5% | 0.95 | 192*66*39 |
As a distributor of LED components, Gainer LED advises clients selecting LED chips and related accessories not to focus solely on the price of the power supply, but to make a comprehensive assessment based on the following factors:
- Project Power Range: Select a power supply model appropriate for the fixture's total wattage to avoid prolonged operation at full load.
- Installation Environment: In areas with high humidity, high temperatures, dust, coastal exposure, or frequent thunderstorms, prioritize ingress protection (IP) ratings and surge protection capabilities.
- Dimming Requirements: If the project involves smart controls or energy-saving management, confirm dimming compatibility in advance.
- Target Market: For export projects, consider input voltage ranges, certification requirements, and local operating conditions.
- Maintenance Costs: For large-scale installations, stability often has a greater impact on total cost than the initial purchase price.
Application Scenarios
The Lifud LF-A1 series (IP67, isolated, outdoor street light power supply) is suitable for:
- Municipal road lighting;
- Industrial park road lighting;
- Residential and commercial complex street lighting;
- Parking lot lighting;
- Outdoor public area lighting;
- Export-oriented LED street light projects;
- Smart lighting and energy-efficiency retrofit projects.
Conclusion
The true value of a street light power supply often becomes apparent only after the project has been in operation for some time. Stable input adaptability, reliable protection ratings, robust surge protection, and comprehensive safety mechanisms help reduce future failure rates, thereby easing the maintenance burden for contractors, fixture manufacturers, and end-users.
For clients planning outdoor LED lighting projects, Gainer LED recommends prioritizing the reliability and compatibility of the LED driver alongside the selection of the light source itself. The Lifud LF-A1 series (IP67, isolated, outdoor street light power supply) stands out as a stable and durable power solution for road lighting and outdoor engineering projects.
