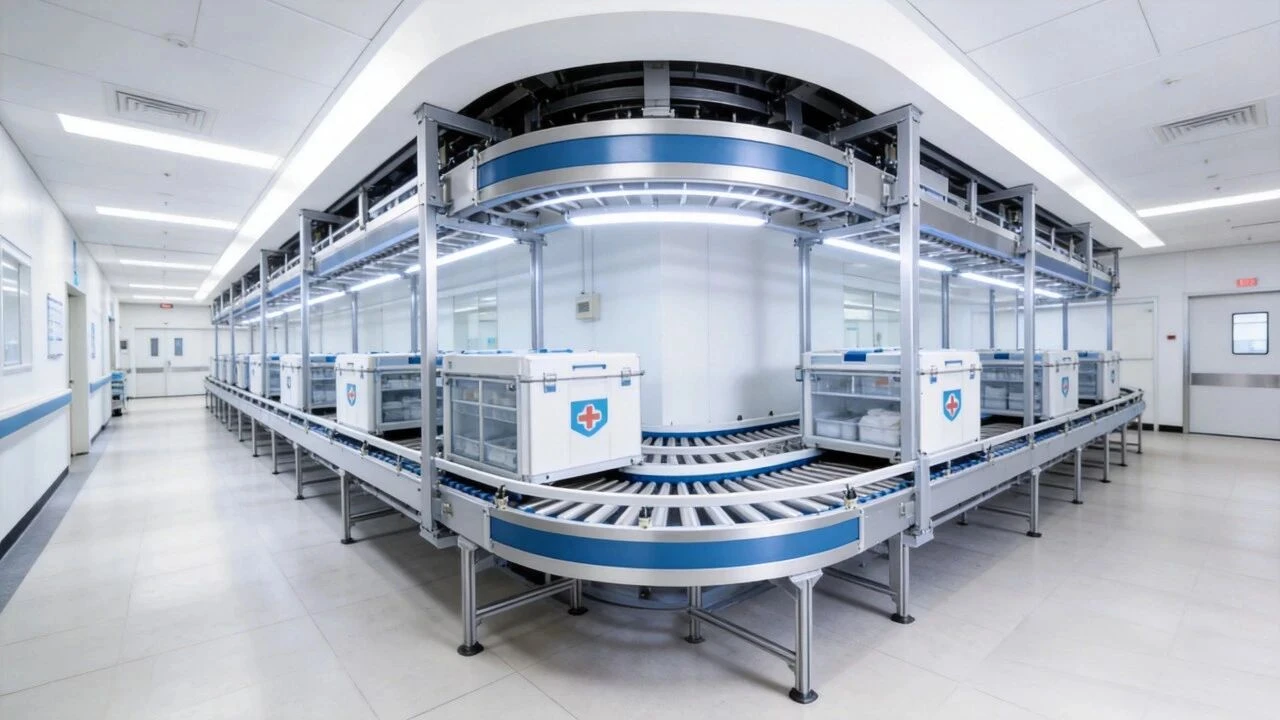

WAGO Rail-Mounted Terminal Blocks Enable 24/7 Continuous Operation Of Hospital Track-Based Logistics Systems

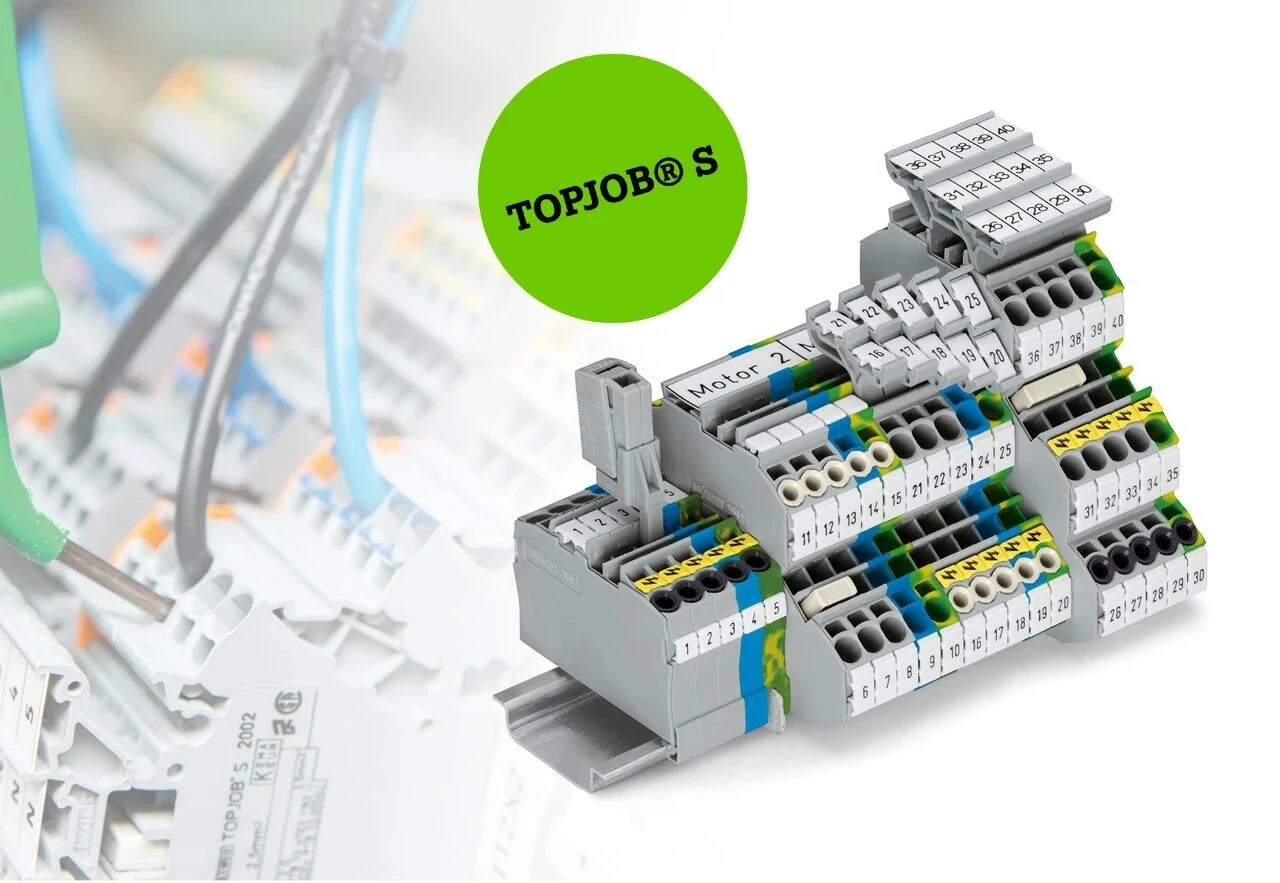

WAGO 2002 Series Rail-Mounted Spring-Pressure Terminal Blocks – The Backbone of Power Distribution and Control Circuits

Serving as universal rail-mounted terminals for main control cabinets and floor-level sub-control boxes, they utilize the constant clamping force of CAGE CLAMP® spring technology to ensure connections remain secure despite long-term system vibration.

They handle power circuits for lifting motors and vacuum pumps, as well as DC 24V control power distribution for PLCs and valve terminals; double-deck terminals enable segregated routing of high- and low-voltage lines, thereby reducing electromagnetic interference.

They facilitate system-wide PE (protective earth) equipotential bonding and dissipate static electricity generated during track operation, ensuring compliance with medical electrical safety standards.

Features include modular installation on standard DIN rails and fast push-in wiring, allowing for high-density wiring within compact wall-mounted enclosures; terminals can be easily added to accommodate future hospital ward expansions, making maintenance and servicing efficient and convenient.

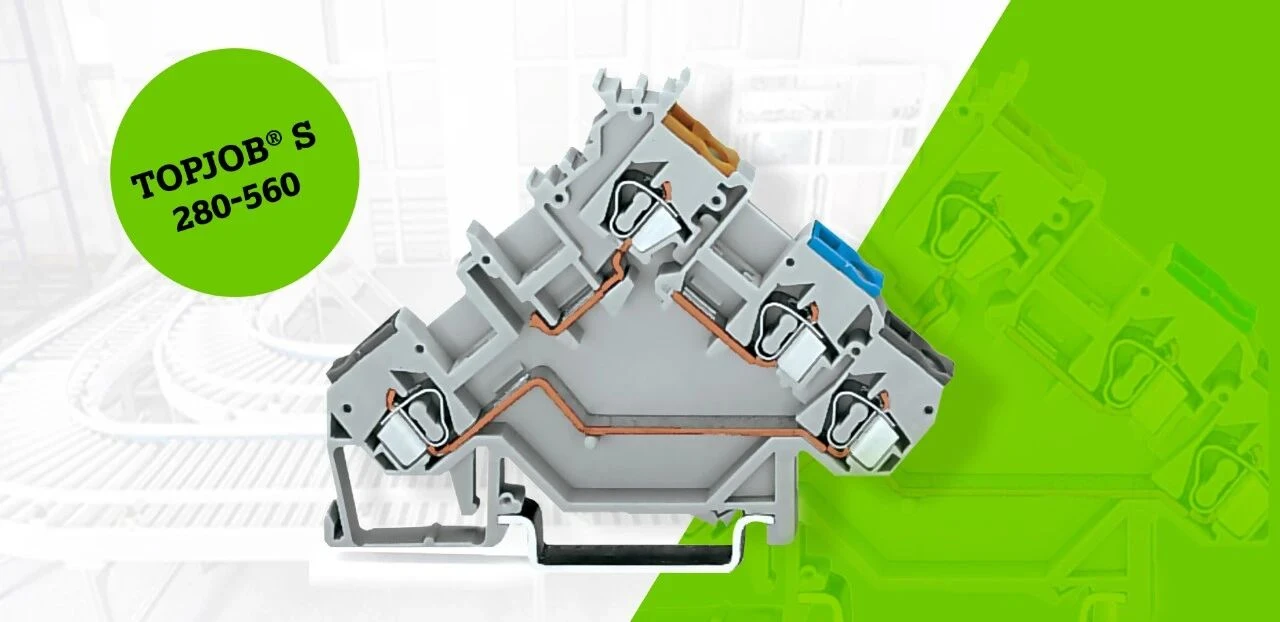

WAGO 280-560 Terminal Blocks for 3-Wire Sensors – Standardized Signal Connection

Specifically designed for the large-scale deployment of photoelectric switches, proximity switches, and vacuum transmitters in logistics systems:

• Color-coded ports standardize 3-wire sensor connections, eliminating wiring errors during installation and significantly reducing rework during commissioning;
• Used for applications such as material presence detection, track switching limits, hoist travel limits, and vacuum pressure signal acquisition; the vibration-resistant structure ensures continuous, stable signal transmission, preventing positioning errors or track jams that cause system downtime;
• Enables centralized, localized signal distribution for valve terminal feedback, resulting in tidy wiring and reduced downtime for maintenance in hospital environments.

Key Application Advantages

• Reliable Vibration Resistance: Both products utilize CAGE CLAMP® spring pressure technology; clamping force remains constant even under vibration, ensuring continuous year-round system operation;
• Suitable for Medical Environments: Features a UL94-V0 flame-retardant housing and passivated conductive parts that withstand disinfectant vapors and condensation-induced corrosion, ensuring long-term, maintenance-free operation;
• Modular and Easy to Implement: Seamlessly mounts on the same DIN-rail; the 2002 series handles power distribution and control wiring, while the 280-560 specializes in sensor signals, creating a standardized electrical control solution;
• High Compliance: Ensures reliable grounding and flame-retardant protection, meeting hospital equipment acceptance standards and safety regulations.
