Lux Series G5 CXM-4 COB Arrays White LED
Highest efficacy at typical >160lm/W, general lighting, directional source delivering high lumen efficacy from the largest selection of Light Emitting Surface (LES), operating power range, and color quality
Description

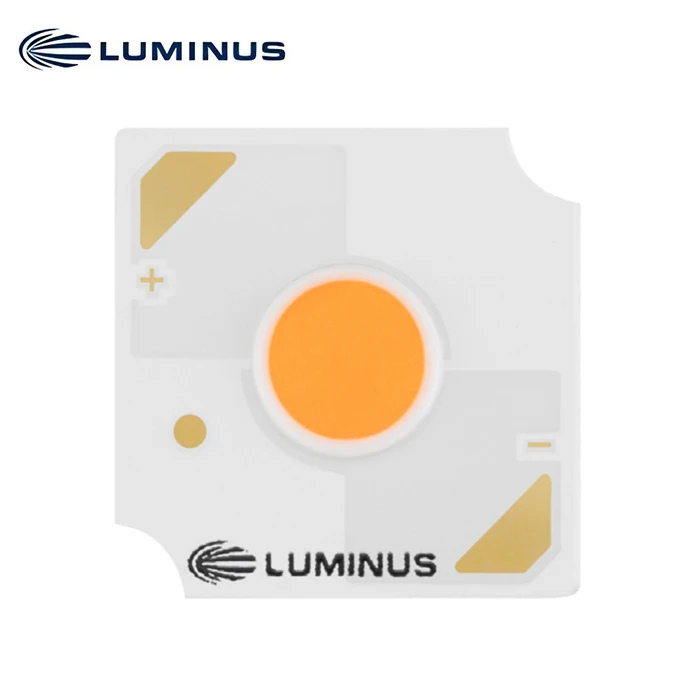

Lux Series G5 CXM-4 COB Arrays White LED
Features
• High lumen output and efficacy typical
• Over 505 lm, 125 LPW @ 3000K, 90CRI, Tj = 85°C
• CCT range 2400K, 2700K, 3000K, 3500K, 4000K, 5000K and 6500K
• 3 SDCM and 2 SDCM color binning standard
• Excellent optical emission uniformity and color over angle consistency
• Superior thermal conductivity for uniform heat spreading
Applications
• Hotel Lighting
• Spotlights/Track Lights
• Downlights
• Shop Lighting
• Hospitality Lighting
• Architectural and Specialty
CCT, CRI and R9 Values
|
Correlated Color Temperatures |
XX Value |
CRI |
*R9 |
|
2400K, 2700K, 3000K, 3500K, 4000K, 5000K, 6500K |
90 |
>90 |
>50 |
|
2700K, 3000K |
95 |
>95 |
>85 |
|
3500K, 4000K, 5000K |
>75 |
Ordering Part Numbers-36V
The following tables describe products with typical flux and minimum flux measured at 120mA and specified at Tj = 85°C. The values at 25°C are calculated and shown for reference only.
|
CCT |
Output Flux (lm) |
Color Rendering Index (min.) |
Ordering Part Number |
|||
|
Typ. (85 °C) |
Min. (85 °C) |
Calculated Typ. (25 °C) |
3-step MacAdam Ellipse |
2-step MacAdam Ellipse |
||
|
2400K |
465 |
435 |
510 |
90 |
CXM-4-24-90-36-TE50-F6-3 |
CXM-4-24-90-36-TE50-F6-2 |
|
2700K |
495 |
460 |
545 |
90 |
CXM-4-27-90-36-TE50-F6-3 |
CXM-4-27-90-36-TE50-F6-2 |
|
455 |
420 |
500 |
95 |
CXM-4-27-95-36-TE50-F6-3 |
CXM-4-27-95-36-TE50-F6-2 |
|
|
3000K |
505 |
470 |
555 |
90 |
CXM-4-30-90-36-TE50-F6-3 |
CXM-4-30-90-36-TE50-F6-2 |
|
470 |
440 |
520 |
95 |
CXM-4-30-95-36-TE50-F6-3 |
CXM-4-30-95-36-TE50-F6-2 |
|
|
3500K |
530 |
490 |
580 |
90 |
CXM-4-35-90-36-TE50-F6-3 |
CXM-4-35-90-36-TE50-F6-2 |
|
470 |
440 |
520 |
95 |
CXM-4-35-95-36-TE50-F6-3 |
CXM-4-35-95-36-TE50-F6-2 |
|
|
4000K |
530 |
490 |
580 |
90 |
CXM-4-40-90-36-TE50-F6-3 |
CXM-4-40-90-36-TE50-F6-2 |
|
490 |
455 |
540 |
95 |
CXM-4-40-95-36-TE50-F6-3 |
CXM-4-40-95-36-TE50-F6-2 |
|
|
5000K |
525 |
485 |
575 |
90 |
CXM-4-50-90-36-TE50-F6-3 |
CXM-4-50-90-36-TE50-F6-2 |
|
495 |
460 |
545 |
95 |
CXM-4-50-95-36-TE50-F6-3 |
CXM-4-50-95-36-TE50-F6-2 |
|
|
6500K |
515 |
480 |
565 |
90 |
CXM-4-65-90-36-TE50-F6-3 |
CXM-4-65-90-36-TE50-F6-2 |
Ordering Part Numbers-18V
The following tables describe products with typical flux and minimum flux measured at 240mA and specified at Tj = 85°C. The values at 25°C are calculated and shown for reference only.
|
CCT |
Output Flux (lm) |
Color Rendering Index (min.) |
Ordering Part Number |
|||
|
Typ. (85 °C) |
Min. (85 °C) |
Calculated Typ. (25 °C) |
3-step MacAdam Ellipse |
2-step MacAdam Ellipse |
||
|
2400K |
465 |
435 |
510 |
90 |
CXM-4-24-90-18-TE50-F6-3 |
CXM-4-24-90-18-TE50-F6-2 |
|
2700K |
495 |
460 |
545 |
90 |
CXM-4-27-90-18-TE50-F6-3 |
CXM-4-27-90-18-TE50-F6-2 |
|
455 |
420 |
500 |
95 |
CXM-4-27-95-18-TE50-F6-3 |
CXM-4-27-95-18-TE50-F6-2 |
|
|
3000K |
505 |
470 |
555 |
90 |
CXM-4-30-90-18-TE50-F6-3 |
CXM-4-30-90-18-TE50-F6-2 |
|
470 |
440 |
520 |
95 |
CXM-4-30-95-18-TE50-F6-3 |
CXM-4-30-95-18-TE50-F6-2 |
|
|
3500K |
530 |
490 |
580 |
90 |
CXM-4-35-90-18-TE50-F6-3 |
CXM-4-35-90-18-TE50-F6-2 |
|
470 |
440 |
520 |
95 |
CXM-4-35-95-18-TE50-F6-3 |
CXM-4-35-95-18-TE50-F6-2 |
|
|
4000K |
530 |
490 |
580 |
90 |
CXM-4-40-90-18-TE50-F6-3 |
CXM-4-40-90-18-TE50-F6-2 |
|
490 |
455 |
540 |
95 |
CXM-4-40-95-18-TE50-F6-3 |
CXM-4-40-95-18-TE50-F6-2 |
|
|
5000K |
525 |
485 |
575 |
90 |
CXM-4-50-90-18-TE50-F6-3 |
CXM-4-50-90-18-TE50-F6-2 |
|
495 |
460 |
545 |
95 |
CXM-4-50-95-18-TE50-F6-3 |
CXM-4-50-95-18-TE50-F6-2 |
|
|
6500K |
515 |
480 |
565 |
90 |
CXM-4-65-90-18-TE50-F6-3 |
CXM-4-65-90-18-TE50-F6-2 |
Ordering Part Numbers-9V
The following tables describe products with typical flux and minimum flux measured at 480mA and specified at Tj = 85°C. The values at 25°C are calculated and shown for reference only.
|
CCT |
Output Flux (lm) |
Color Rendering Index (min.) |
Ordering Part Number |
|||
|
Typ. (85 °C) |
Min. (85 °C) |
Calculated Typ. (25 °C) |
3-step MacAdam Ellipse |
2-step MacAdam Ellipse |
||
|
2400K |
465 |
435 |
510 |
90 |
CXM-4-24-90-9-TE50-F6-3 |
CXM-4-24-90-9-TE50-F6-2 |
|
2700K |
495 |
460 |
545 |
90 |
CXM-4-27-90-9-TE50-F6-3 |
CXM-4-27-90-9-TE50-F6-2 |
|
455 |
420 |
500 |
95 |
CXM-4-27-95-9-TE50-F6-3 |
CXM-4-27-95-9-TE50-F6-2 |
|
|
3000K |
505 |
470 |
555 |
90 |
CXM-4-30-90-9-TE50-F6-3 |
CXM-4-30-90-9-TE50-F6-2 |
|
470 |
440 |
520 |
95 |
CXM-4-30-95-9-TE50-F6-3 |
CXM-4-30-95-9-TE50-F6-2 |
|
|
3500K |
530 |
490 |
580 |
90 |
CXM-4-35-90-9-TE50-F6-3 |
CXM-4-35-90-9-TE50-F6-2 |
|
470 |
440 |
520 |
95 |
CXM-4-35-95-9-TE50-F6-3 |
CXM-4-35-95-9-TE50-F6-2 |
|
|
4000K |
530 |
490 |
580 |
90 |
CXM-4-40-90-9-TE50-F6-3 |
CXM-4-40-90-9-TE50-F6-2 |
|
490 |
455 |
540 |
95 |
CXM-4-40-95-9-TE50-F6-3 |
CXM-4-40-95-9-TE50-F6-2 |
|
|
5000K |
525 |
485 |
575 |
90 |
CXM-4-50-90-9-TE50-F6-3 |
CXM-4-50-90-9-TE50-F6-2 |
|
495 |
460 |
545 |
95 |
CXM-4-50-95-9-TE50-F6-3 |
CXM-4-50-95-9-TE50-F6-2 |
|
|
6500K |
515 |
480 |
565 |
90 |
CXM-4-65-90-9-TE50-F6-3 |
CXM-4-65-90-9-TE50-F6-2 |
