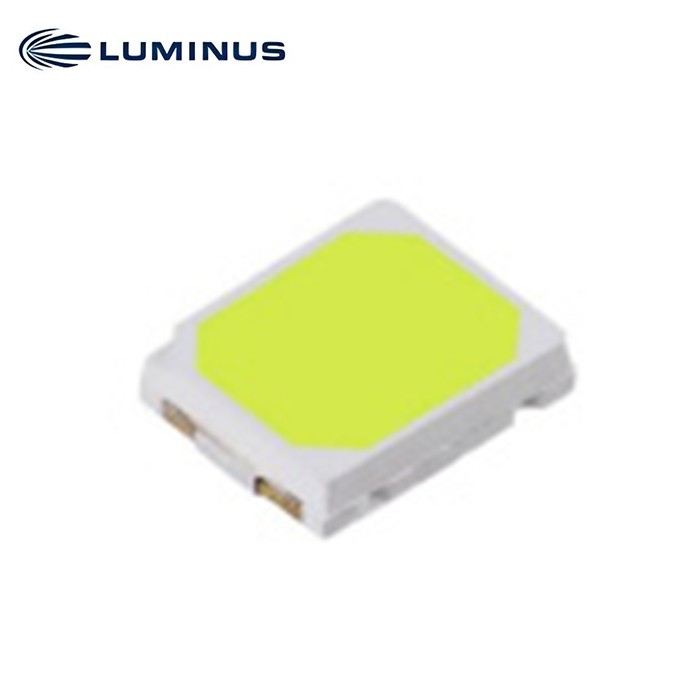

MP-2835-120K Mid Power LED
Features
• High efficacy
• CRI Options: Minimum 90
• Low thermal resistance
• Compatible with automatic placement equipment
• Compatible with infrared reflow solder process
Applications
• Replacement lamps
• Panel lighting
• Down lights
• Architectural lighting
Ordering Part Numbers
|
Minimum CRI |
Nominal CCT |
Luminous Flux |
Ordering Part Number |
|
|
Minimum Flux (lm) |
Maximum Flux (lm) |
|||
|
90 |
2700K |
34 |
35 |
MP-2835-120K-27-90 |
|
3000K |
35 |
36 |
MP-2835-120K-30-90 |
|
|
3500K |
35 |
37 |
MP-2835-120K-35-90 |
|
|
4000K |
36 |
37 |
MP-2835-120K-40-90 |
|
|
5000K |
36 |
37 |
MP-2835-120K-50-90 |
|
|
5700K |
35 |
36.5 |
MP-2835-120K-57-90 |
|
|
6500K |
35 |
36.5 |
MP-2835-120K-65-90 |
|
Binning Structure
All MP-2835-120K monochromatic LEDs are tested for luminous flux/ dominant wavelength and placed into one of the following flux/wave length bins. The binning structure is universally applied across each monochromatic color ofthe MP-2835-120K product line.
Flux Bins
|
Bin Code |
Binning @ 65 mA, Tc= 25°C |
|
|
Minimum Flux (lm) |
Maximum Flux (lm) |
|
|
D9 |
32 |
34 |
|
E1 |
34 |
36 |
|
E2 |
36 |
38 |
Forward Voltage Bins
|
Voltage Bin |
Binning @ 65 mA, Tc= 25°C |
|
|
Minimum Voltage (V) |
Maximum Voltage (V) |
|
|
Z |
2.6 |
2.7 |
|
A |
2.7 |
2.8 |
|
B |
2.8 |
2.9 |
Binning Structure
Color Bins1
|
Color Code |
Center |
Radius |
Angle(°) |
||
|
x |
y |
a |
b |
. |
|
|
27M3 |
0.4582 |
0.4099 |
0.008100 |
0.004200 |
53.42 |
|
27M5 |
0.4582 |
0.4099 |
0.013500 |
0.007000 |
53.42 |
|
30M3 |
0.4342 |
0.4028 |
0.008340 |
0.004080 |
53.13 |
|
30M5 |
0.4342 |
0.4028 |
0.013900 |
0.006800 |
53.13 |
|
35M3 |
0.4080 |
0.3916 |
0.009270 |
0.004140 |
54.00 |
|
35M5 |
0.4080 |
0.3916 |
0.015450 |
0.006900 |
54.00 |
|
40M3 |
0.3825 |
0.3798 |
0.009390 |
0.004020 |
53.43 |
|
40M5 |
0.3825 |
0.3798 |
0.015650 |
0.006700 |
53.43 |
|
50M3 |
0.3451 |
0.3554 |
0.008220 |
0.003540 |
59.37 |
|
50M5 |
0.3451 |
0.3554 |
0.013700 |
0.005900 |
59.37 |
|
57M3 |
0.3290 |
0.3417 |
0.006705 |
0.003300 |
58.35 |
|
57M5 |
0.3290 |
0.3417 |
0.011175 |
0.005500 |
58.35 |
|
65M3 |
0.3130 |
0.3290 |
0.006690 |
0.002850 |
58.34 |
|
65M5 |
0.3130 |
0.3290 |
0.011150 |
0.004750 |
58.34 |
Absolute Maximum Ratings1,2,3
|
Parameter |
Symbol |
Values |
Unit |
|
Forward Current |
If |
400 |
mA |
|
Pulse Forward Current |
Ifp |
600 |
mA |
|
Power Dissipation |
Pd |
1160 |
mW |
|
Reverse Voltage |
V r |
5 |
V |
|
Operating Temperature Range |
T opr |
-40~+85 |
°C |
|
Storage Temperature Range |
T stg |
-40~+85 |
°C |
|
Junction Temperature |
T j |
120 |
°C |
|
Soldering Temperature |
Tsld |
230 °C or 260 °C for 10 sec |
°C |
