Description

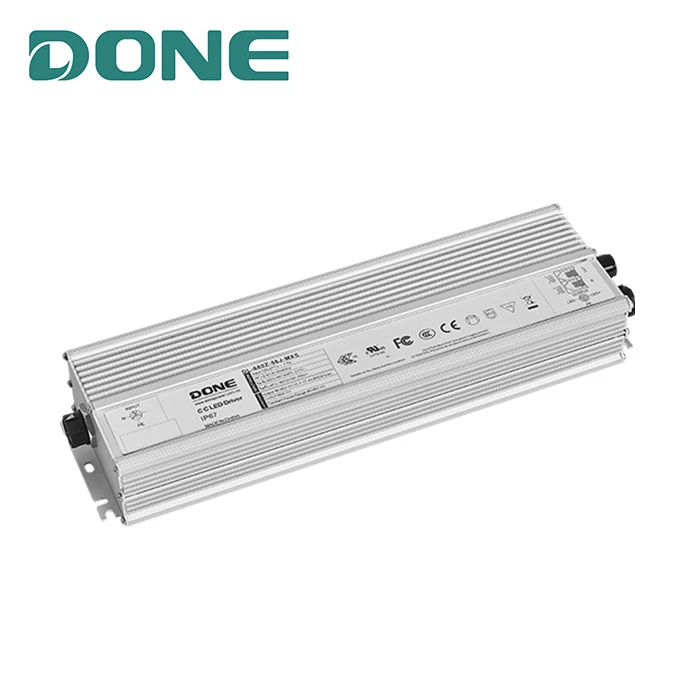

DL-680Z-MXS
Power: 680W
Series: Constant current type
Application: plant lighting, sports lighting, etc.
Certificates: CB, CE, CCC, ENEC, SAA
Warranty: 5 years
Features
• Class I type for insulation(pending)
• Input voltage range: 100-277 V ~ 50/60 Hz
• Efficiency :95.5%(Typ.)
• Constant current output ,with power limitation for control mode
• Metal case, protection grade against water and dust: IP67
• Surge level: differential mode :6kV, common mode :15kV
• Function selection: Isolated 3 in 1 dimming, Auxiliary source: 12V/250mA
• Lifetime design: 5years
Applications
Street lighting,Industrial lighting,Venue lighting,Floodlight lighting,Landscape lighting,Plant lighting
| Product Model | Rated power | Input voltage | Output voltage |
Constant power voltage |
Output current | efficiency | PF value |
Lightning protection level |
Product size |
| DL-680Z-56X-MXS | 680W | 100-277V | 36-56V | 46-56V | 11-14.8A | 95.5% | 0.96 | 6/15KV | 315*90*44.5mm |
| DL-680Z-56J-MXS | 680W | 100-277V | 36-56V | 46-56V | 11-14.8A | 95.5% | 0.96 | 6/15KV | 325*90*44.5mm |
Note：
1. Test conditions: Ta=25°C, under 230Vac input,after running for 30 minutes with full load.
2. When the input is less than 108Vac, users must reduce the output power to within 400W. The output power within the rated
and input voltage range should not be less than 70W.
3. When the input 120-277VAC,rated power 680W.Please refer to "THE OUTPUT POWER VS INPUT VOLTAGE" curve chart for
details.
