EUCHIPS DLP-C Series Non-Dimmable Constant Voltage LED Power Supply 30–180W GaN

- Constant voltage (CV) output. Three taps - 12V, 24V and 48V - for loads that take power by voltage: LED strips, modules and linear fixtures. COB and high-power LED strings requiring constant-current drive are not suitable.
- Non-dimmable. Projects needing DALI, 0-10V or triac interfaces must move to the corresponding EUCHIPS dimming category; DLP-C has no dimming input.
- Input 220–240VAC, operating range 198–264VAC, 50/60Hz. A dedicated 230V-grid design, not a 100–277V wide-range input.
- Indoor use, IP20, no waterproofing on the housing; an additional enclosure is required outdoors.
- Output accuracy. On the 24V tap, the constant-voltage window is 22.8–25.2V (±5%), output voltage accuracy ±3%, line regulation ±1%.

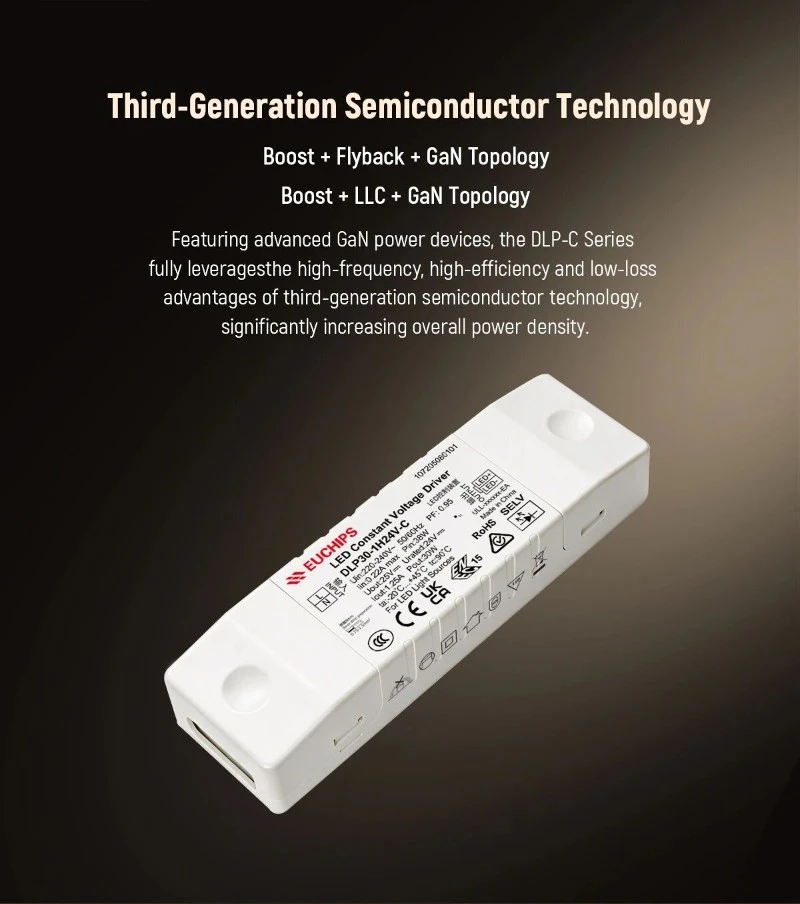

BOOST + Flyback + GaN solution;
BOOST + LLC + GaN solution;
Utilizing advanced GaN power devices to fully leverage the technical advantages of third-generation semiconductors-such as high frequency, high efficiency, and low loss-thereby significantly increasing the overall power density.

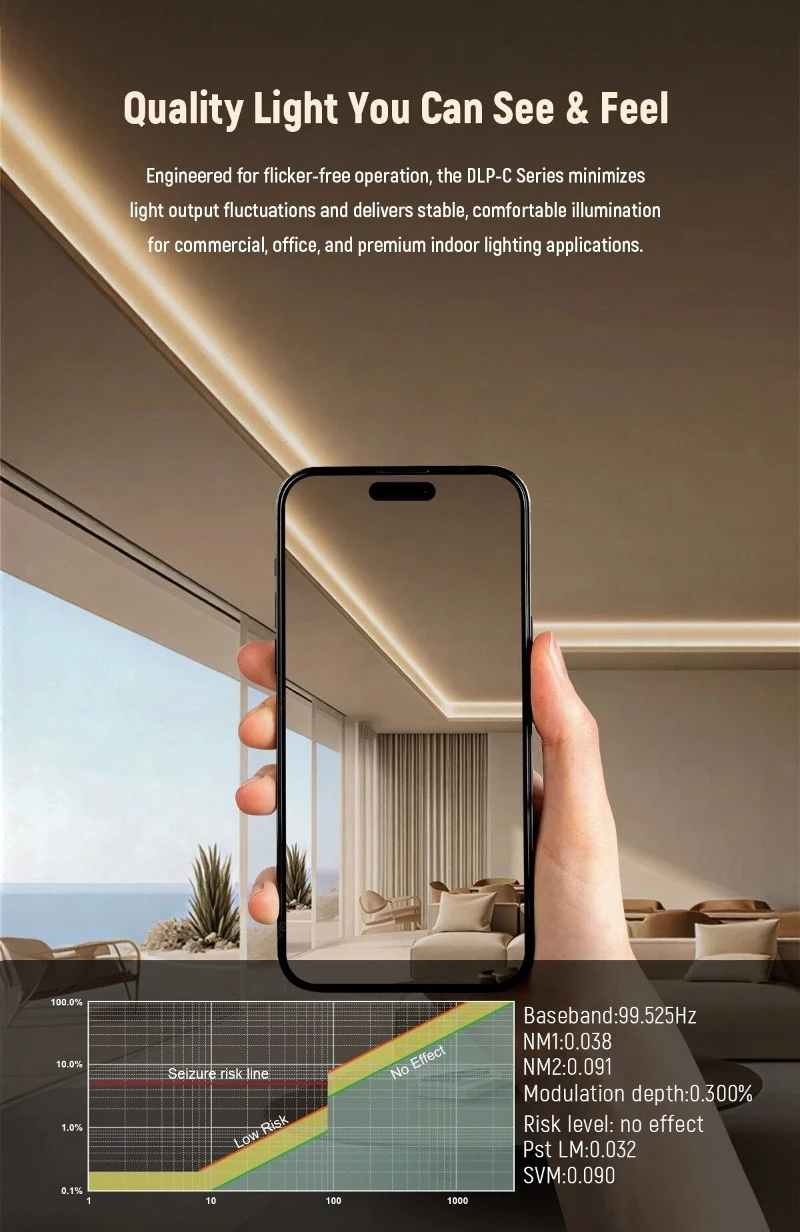

Featuring a flicker-free output design, it effectively minimizes light output fluctuations, creating a more stable and comfortable lighting environment for commercial, office, and high-quality indoor applications.

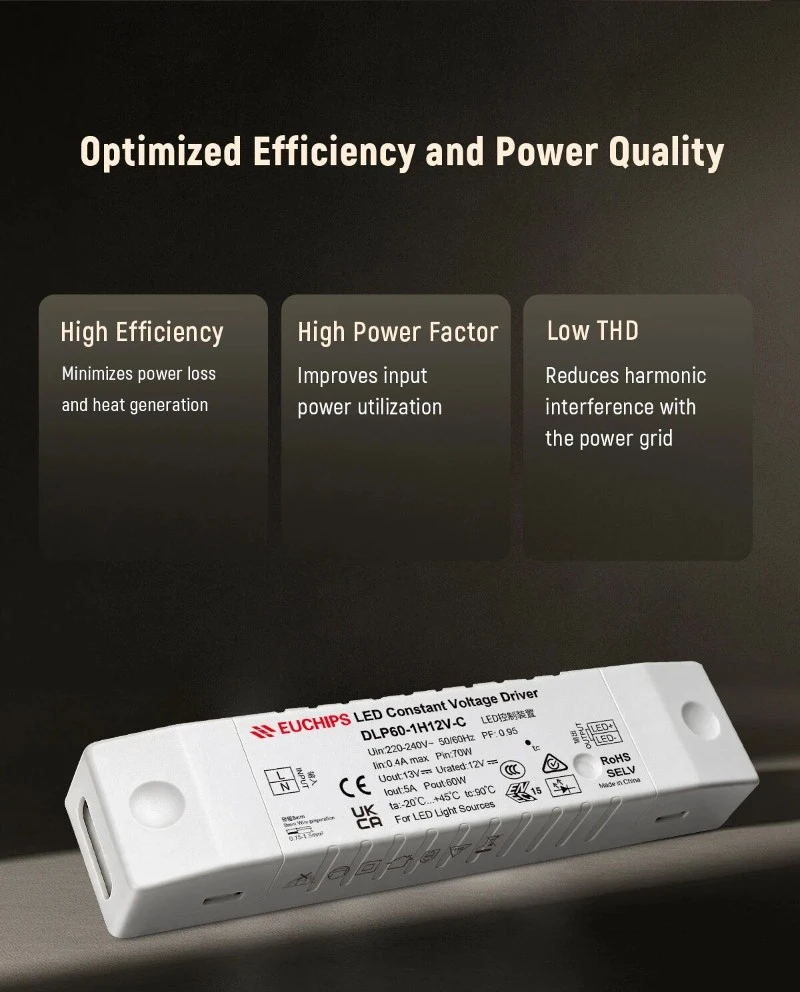

High conversion efficiency: Reduces power loss, internal losses, and heat generation.
High power factor (PF): Improves electrical energy utilization efficiency.
Low total harmonic distortion (THD): Reduces harmonic interference with the power grid.

Low-noise design: Ensures quiet operation even in noise-sensitive environments such as offices, hotels, residences, and showrooms (<24dB).

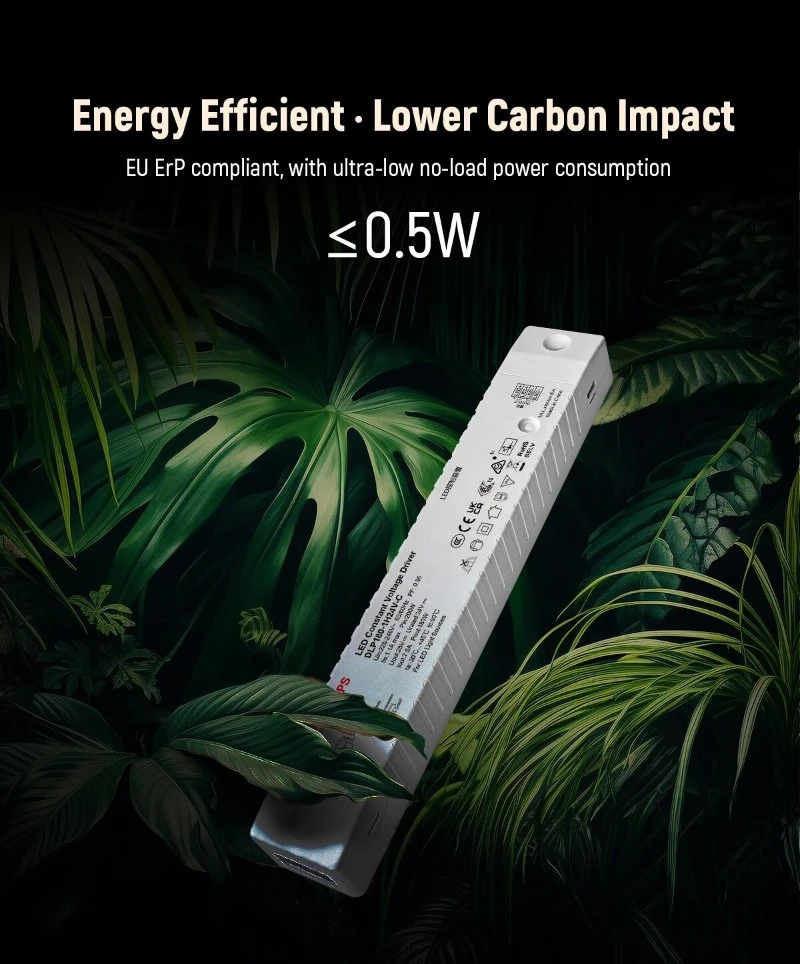

Low-carbon and energy-efficient: Complies with EU ErP energy efficiency standards and features ultra-low no-load power consumption (≤0.5W).

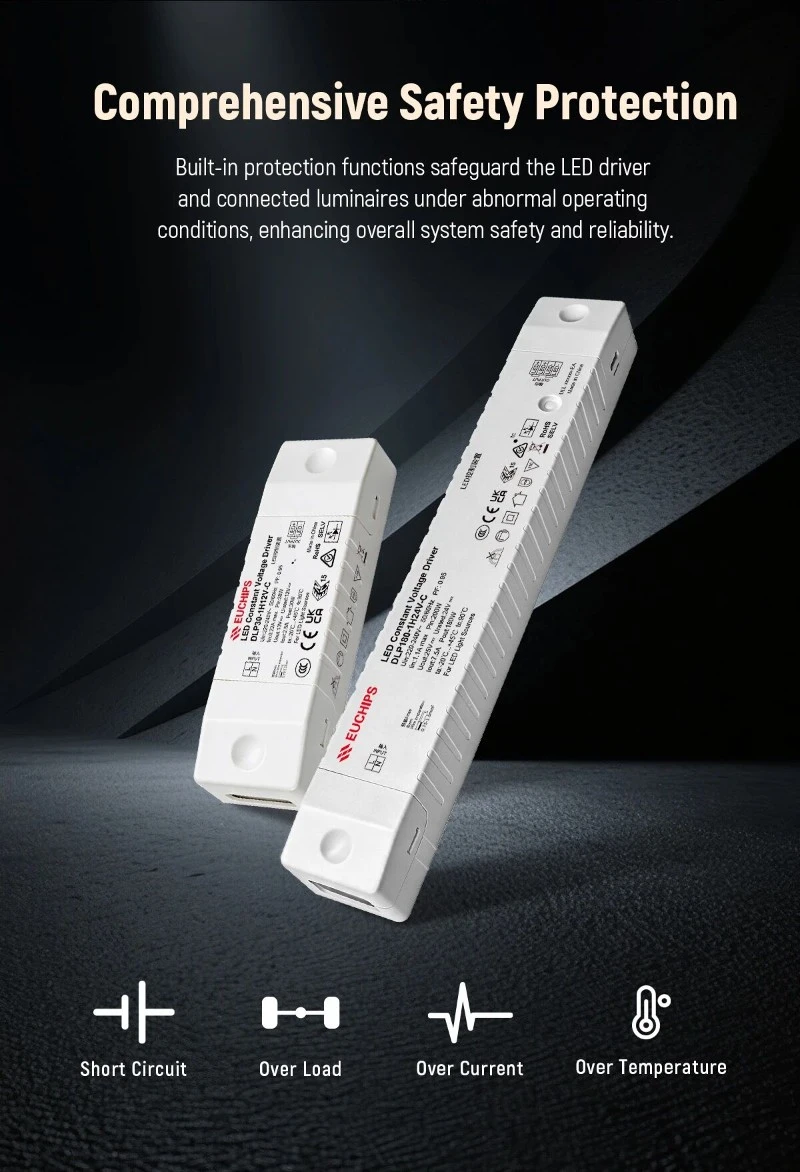

Four-fold safety protection: Provides reliable protection for the power supply and connected LED luminaires during abnormal operating conditions, enhancing the safety and stability of the entire lighting system (short-circuit, overload, over-current, and over-temperature protection).
International certifications: CCC, CE, UKCA, CB, ENEC, and RCM certified.
