Ledestar 5050 PPE Series Ultra-High Efficacy LEDs Key Selection Criteria For Port And Bridge Lighting
Leave a message
The Ledestar 5050 PPE series is characterized by its ultra-high efficacy-surpassing 280 lm/W at 1W-and includes targeted upgrades for enhanced resistance against sulfurization and salt spray.
I. Core Product Specifications
- Package Type: EMC 5050
- Luminous Efficacy: >280 lm/W at 1W
- Reliability: Sulfur-resistant, salt-spray resistant, and resistant to high temperature and humidity
- Certifications: LM-80, UL
- Warranty: 10 years
- Primary Applications: Port and bridge street lighting
Note: The 280 lm/W figure represents data for a single LED tested at 1W. At the luminaire level, efficacy typically decreases due to factors such as driver efficiency, secondary optics, and thermal management; therefore, comparisons between solutions should be based on standardized testing criteria.
II. Technical Approach to Sulfur and Salt-Spray Resistance
This series utilizes PTFE materials combined with a PECVD (Plasma-Enhanced Chemical Vapor Deposition) coating process, alongside performance upgrades to the EMC 5050 lead frame. Official data indicates a 3% increase in brightness compared to the original design, coupled with enhanced airtightness and UV resistance.
Regarding failure mechanisms, the primary causes of failure for lighting in coastal ports and cross-sea bridges are corrosion from sulfur-containing gases, salt-spray erosion, and UV-induced aging-all of which directly accelerate lumen depreciation. The coating process addresses the intrusion of external agents, while the improved airtightness reduces moisture accumulation at the package interface; these two factors have a more direct impact on long-term lumen maintenance than initial brightness does. III. Understanding Certification and Warranty Terms
LM-80 measures the lumen maintenance of LED light sources, whereas UL is a safety certification; they address different aspects and cannot substitute for one another. A 10-year warranty in actual projects usually comes with conditions regarding operating current, maximum junction temperature, and the operating environment.
III. Matching Application Scenarios
Port Streetlights
- Environment: High salt spray, high humidity, and the presence of both dust and oil vapors.
- Usage Characteristics: Continuous operation throughout the night; replacement requires aerial work equipment and port scheduling coordination.
- Key Concerns: Lumen depreciation rate, batch consistency, and long-term supply capability.

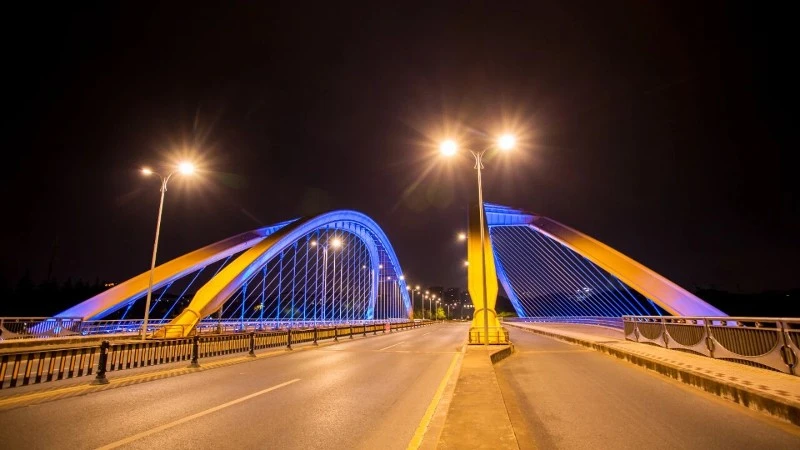

Bridge Streetlights
- Environment: High salt spray concentrations (for cross-sea or riverside bridges); constant exposure to bridge deck vibrations and wind loads.
- Usage Characteristics: Maintenance requires lane closures; the indirect cost of a single maintenance event far exceeds the cost of the luminaire itself.
- Key Concerns: Vibration-resistant structural design, airtightness, and the enforceability of warranty terms.
Both scenarios share a sensitivity to maintenance frequency but are relatively less sensitive to the initial purchase price.
FAQ
Q: Does the figure of >280 lm/W at 1W refer to the single LED package or the complete luminaire?
A: It is the test value for a single LED package at 1W. The luminous efficacy of the complete luminaire must account for losses from the driver, optics, and thermal management system.
Q: What does the 10-year warranty cover?
A: Specific terms are governed by Ledstar's official warranty documentation; conditions regarding operating current, junction temperature, and environmental factors are typically stipulated, and usage outside these parameters may not be covered.
Q: Where does the cost difference compared to standard EMC 5050 LEDs primarily come from?
A: It stems mainly from the PTFE material, the PECVD coating process, and performance upgrades to the lead frame. Please inquire about specific pricing based on purchase volume.
Gainer LED (www.gainer-led.com) is a distributor of LED components, with a product line covering mid-to-high-power lighting LEDs. For inquiries regarding samples, specifications, and bulk supply of the Ledstar 5050 PPE series, please contact us via the official website.
The parameters in this article are compiled from official Ledstar data; please refer to the latest specifications and certification documents for actual product selection.
