Generation 3 CXM-32

STANDARD GEN 3

Send Inquiry Chat Now

Download

Description

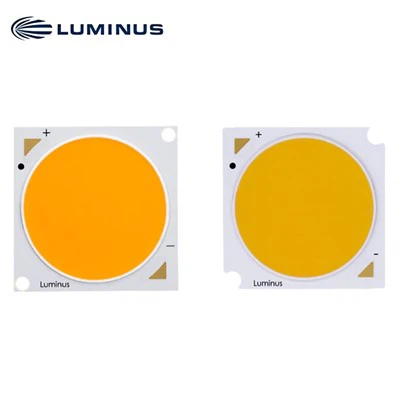

Generation 3 CXM-32 COB Arrays White LED

Luminus Chip-on-Board (COB) LED series offers a complete lighting class solution designed for high performance illumination applications. The selection covers a wide lumen range from less than 400lm to over 10,000lm, all major color temperatures and can deliver.

Features
• High lumen output and efficacy typical
• Over 17,295 lm, 154 LPW @ 3000K, 80 CRI, Tj = 85ºC
• Over 19,675 lm, 176 LPW @ 5000K, 70 CRI, Tj = 85ºC
• CCT 2700K, 3000K, 3500K, 4000K, 5000K, 5700K and 6500K
• CRI Ra 80, 90 and 95 min. in all colors (except 5000K, 5700K and 6500K)
• CRI Ra 70 in 4000K, 5000K, 5700K and 6500K
• R9 up to 85 min. CRI 98 typical in 2700K, 3000K, 3500K and 4000K
• 3 SDCM color binning accuracy
• Excellent optical emission uniformity and color over angle consistency
• Exceptional long term color stability
• Package thermal conductivity more than twice the industry average
• Environmentally friendly: RoHS and REACH compliant
• UL reconigized, file # E465703

Applications
• Architectural and Specialty
• Street Lighting
• Parking Lot and Area Lighting
• Tunnel Lighting

Color Temperature, CRI and R9 Values

Color Temperatures	XX Value	CRI	R9
4000K, 5000K, 5700K, 6500K	70	>70	-
2700K, 3000K, 3500K, 4000K, 5000K, 5700K, 6500K	80	>80	>0
2700K, 3000K, 3500K, 4000K, 5000K	90	>90	>50
2700K, 3000K	95	>95	>85
3500K, 4000K	95	>95	>75

CXM-32 Part Numbers

The following tables describe products with typical flux and minimum flux measured at 2,200mA and specified at Tj = 85ºC. The values at 25ºC are calculated and shown for reference only. Luminus may choose to ship a smaller chromaticity bin in an order for a larger.

CCT	Output Flux (lm)		Reference	Color Rendering Index	Ordering Part Number
CCT	Typ. (85ºC)	Min. (85ºC)	Typ. (calculated) (25ºC)	CRI (min.)	3-step MacAdam Ellipse
2700K	16,370	15,225	18,005	80	CXM-32-27-80-54-AC30-F4-3
	13,490	12,545	14,840	90	CXM-32-27-90-54-AC30-F4-3
	12,905	12,000	14,195	95	CXM-32-27-95-54-AC30-F4-3
3000K	17,295	16,085	19,025	80	CXM-32-30-80-54-AC30-F4-3
	14,550	13,530	16,005	90	CXM-32-30-90-54-AC30-F4-3
	13,585	12,635	14,945	95	CXM-32-30-95-54-AC30-F4-3
3500K	17,810	16,565	19,590	80	CXM-32-35-80-54-AC30-F4-3
	14,840	13,800	16,320	90	CXM-32-35-90-54-AC30-F4-3
	14,190	13,200	15,610	95	CXM-32-35-95-54-AC30-F4-3
4000K	19,350	18,000	21,285	70	CXM-32-40-70-54-AC30-F4-3
	18,045	16,780	19,850	80	CXM-32-40-80-54-AC30-F4-3
	15,655	14,560	17,220	90	CXM-32-40-90-54-AC30-F4-3
	14,530	13,515	15,675	95	CXM-32-40-95-54-AC30-F4-3

CCT	Output Flux (lm)		Reference	Color Rendering Index	Part Number
CCT	Typ. (85ºC)	Min.. (85ºC)	Typ. (calculated) (25ºC)	CRI (min.)	5-step MacAdam Ellipse	3-step MacAdam Ellipse
5000K	19,675	18,300	21,645	70	CXM-32-50-70-54-AC30-F4-5	CXM-32-50-70-54-AC30-F4-3
	18,170	16,895	19,985	80	CXM-32-50-80-54-AC30-F4-5	CXM-32-50-80-54-AC30-F4-3
	15,730	14,630	17,305	90	CXM-32-50-90-54-AC30-F4-5	CXM-32-50-90-54-AC30-F4-3
5700K	19,690	18,310	21,660	70	CXM-32-57-70-54-AC30-F4-5	CXM-32-57-70-54-AC30-F4-3
5700K	18,140	16,865	19,950	80	CXM-32-57-80-54-AC30-F4-5	CXM-32-57-80-54-AC30-F4-3
6500K	19,700	18,320	21,670	70	CXM-32-65-70-54-AC30-F4-5	CXM-32-65-70-54-AC30-F4-3
6500K	18,100	16,835	19,910	80	CXM-32-65-80-54-AC30-F4-5	CXM-32-65-80-54-AC30-F4-3

CXM-32 Operating Characteristics1

Optical and Electrical Characteristics

Parameter	Symbol	Minimum	Typical	Maximum	Unit
Forward Current2	If		2,200	4,400	mA
Forward Voltage3	Vf	48	51	56	V
Power			112	240	W
Operating Case Temperature4	T c			105	ºC
Light Emitting Surface Diameter	LES		32		mm
Thermal Resistance (junction-to-case)	Θjc		0.11		ºC/W
Junction Temperature	Tj			140	ºC
Viewing Angle			120		Degree
